Code EK000149

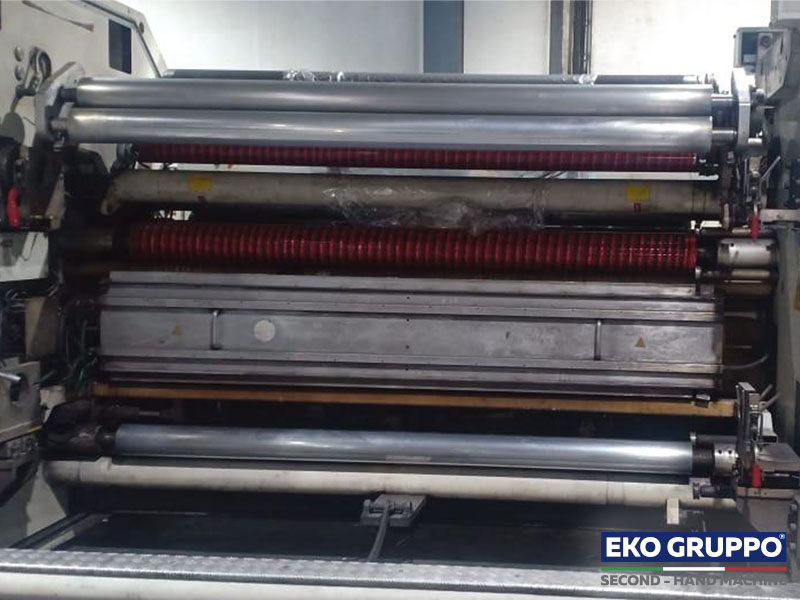

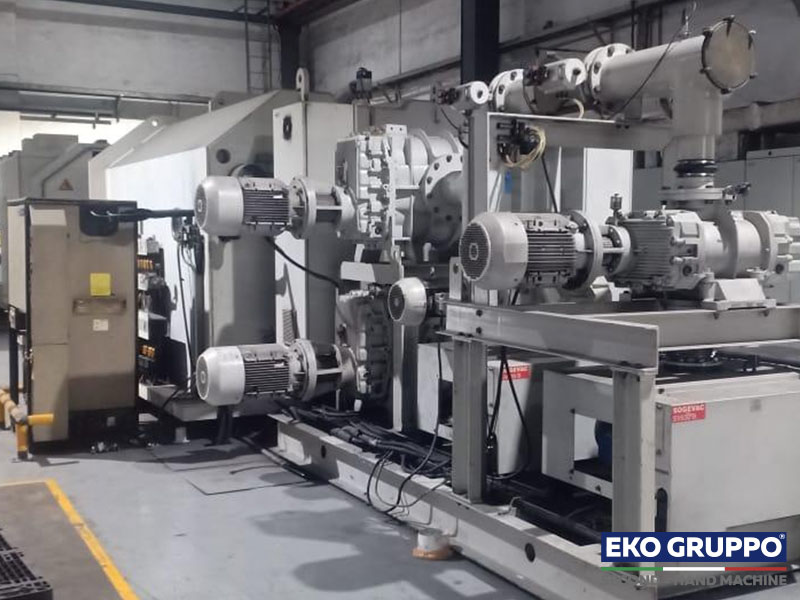

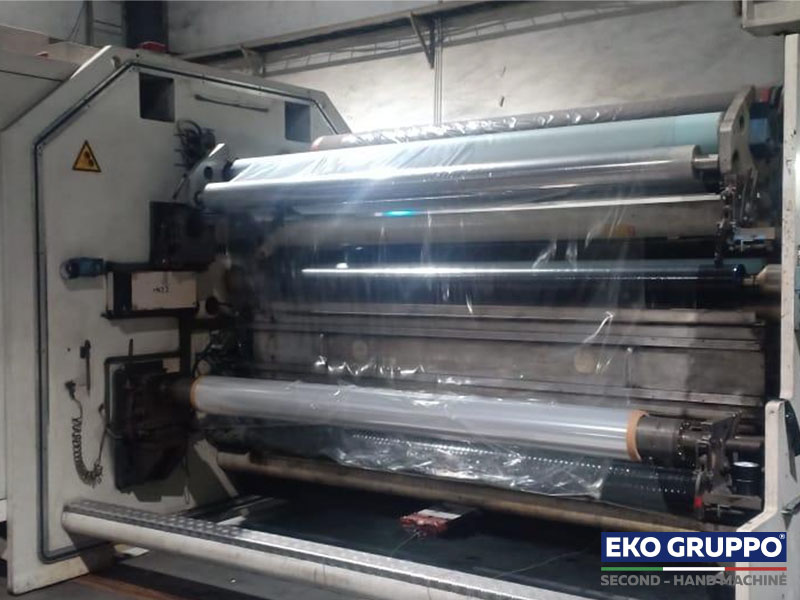

TopMet 2450 Vacuum Metallizer
TOPMET
FILM METALLIZERS CONVERTING MACHINES
The TopMet 2450 Vacuum Metalizer is designed for wide web processing, and characterized by minimal downtime and superb quality at high speeds, which is why TopMet is noted as one of the best premier supplier of vacuum coating and metallizing solutions for barrier, decorative, security and high technology applications for flexible packaging.
This second-hand TopMet Vacuum Metallizer allow allow a speed range up to 600 m/min and a film width of 2.450 mm.
Manufacturer
Top Met
Year of construction
2003
Model
F 2450
Raw material
BOPP
Film width
2.450
Condition
Second-hand machine
Technical Data | |||
|---|---|---|---|
REFERENCE MACHINE | F 2450 | ||
MATERIALS | BOPP | ||
FILM WIDTH (MAX) | 2.450 mm | ||
FILM THICKNESS RANGE | from 15 μm to 80 μm (BOPP) | ||
BOAT NUMBER | 26 | ||
SPEED | 600 m/min | ||
MAX DIAMETER REEL UNWINDER | 1.000 mm | ||
MAX DIAMETER REEL REWINDER | 1.000 mm | ||

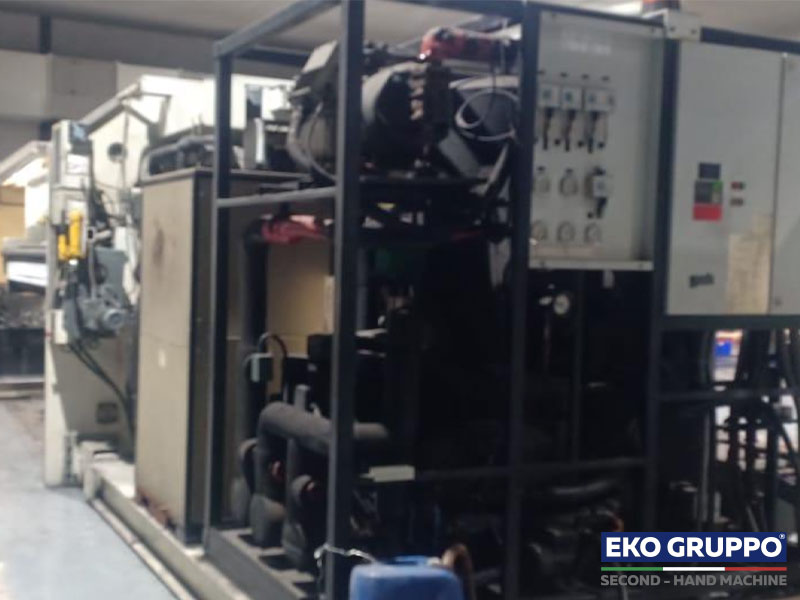

ADDITIONAL INFO | POLYCOLD PFC 1102 HC | ||
Film Metallizer Machines
Metallized films are films created by coating a polymer film with a thin layer of metal, usually aluminum. The film retains some of its original properties, such as toughness and low density, while gaining additional features like reduced permeability to external factors.
Metallization is achieved through a physical vapor deposition process. The metal is heated and evaporated within a vacuum. It then condenses onto the cold polymer film, which is unwound close to the source of metal vapor. The most common films used for metallization are oriented polypropylene and polyethylene terephthalate (PET), although nylon, polyethylene, and cast polypropylene are also used.
Metallized films find application in decorative purposes, food packaging, as well as specialty functions such as insulation and electronics.
