Code EK000198

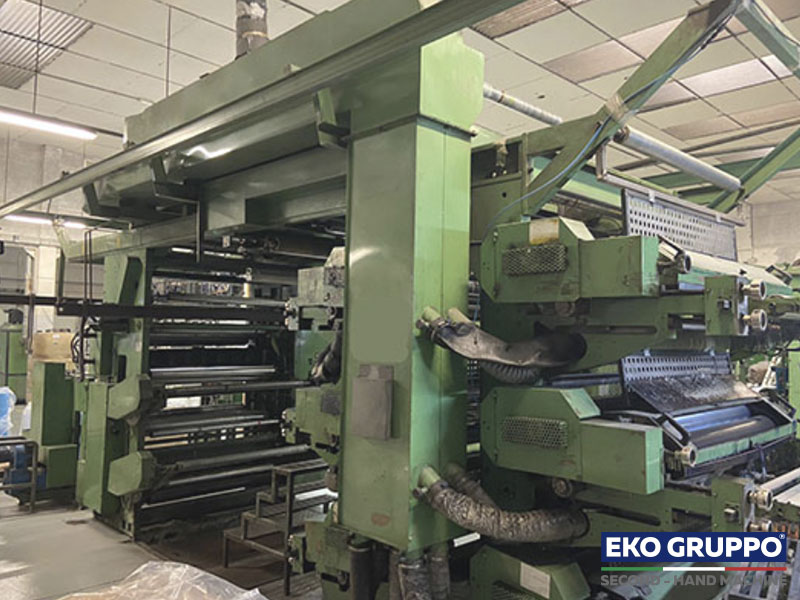

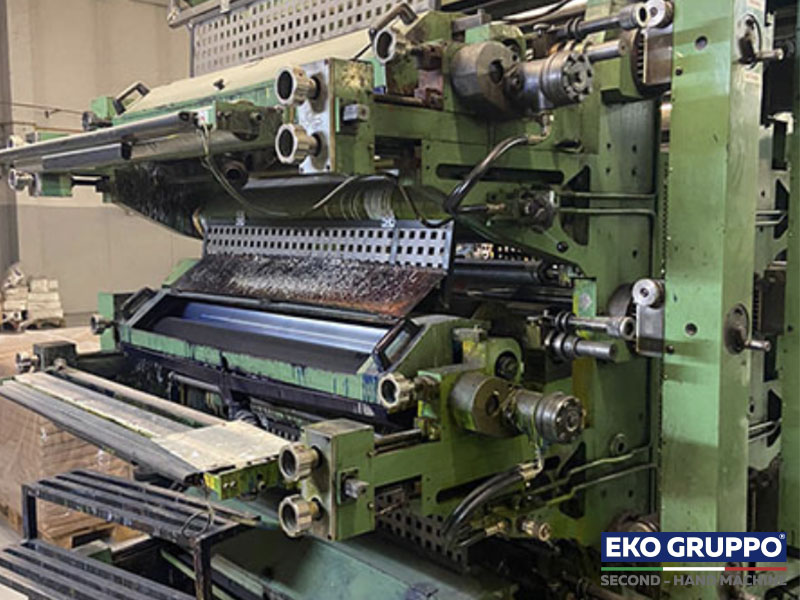

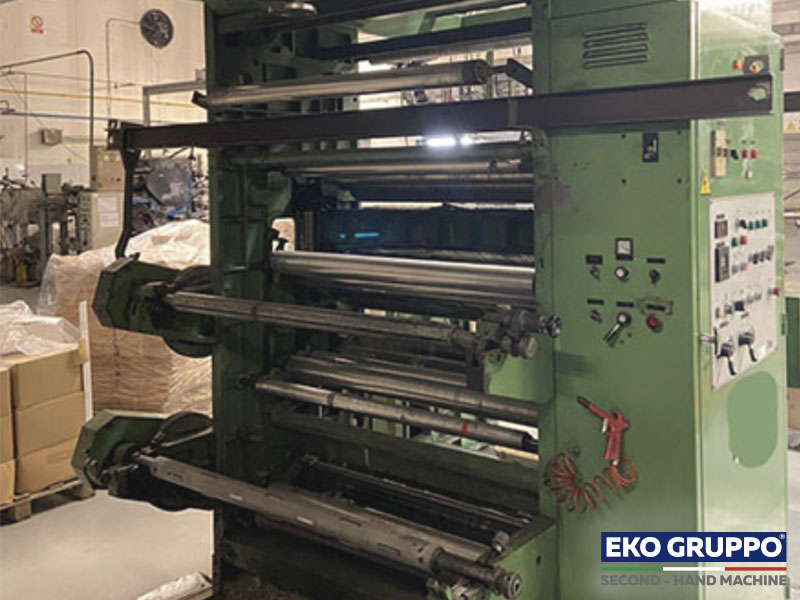

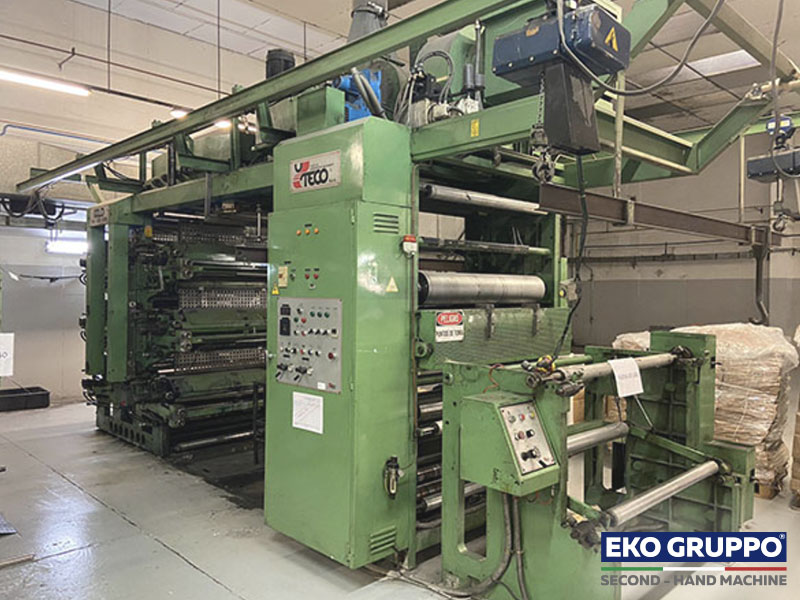

Uteco Gold 608 RR Flexo Stack Printer
UTECO
STACK FLEXOGRAPHIC
PRINTING MACHINE
This used Uteco Gold 608 RR Flexo Stack Printer allow high and stable print quality with a range up to 250 m/min and a film width till of 1.200 mm.
The Uteco Stack type printer is designed for in-line or reel-to-reel applications, with a solid and reliable structure suitable for large printing widths and runs.
Gold model is one of flexographic printing machine types mainly intended for printing on paper, cardboard, tubulars and plastic films for food packaging, as well as for industrial and personal care product packaging and labels. The solid structure allows to manage even large printing repeats and print widths.
Manufacturer
Uteco
Year of construction
1991
Number of colors
6 colors
Model
GOLD 608 RR
Film width
1.200 mm
Condition
Second-hand machine
Technical Data | |||
|---|---|---|---|
REFERENCE MACHINE | GOLD 608 RR | ||
NUMBER OF COLORS | 6 | ||
GEARLESS | NO | ||
PRINTING WIDTH | 1.200 mm | ||
WEB WIDTH | 1.250 mm | ||
MECHANICAL SPEED | 250 m/min | ||
PRINT REPEAT RANGE | min 300 mm / max 600 mm | ||
MAX REEL DIAMETER UNWINDING | 1.000 mm | ||
MAX REEL DIAMETER REWINDING | 1.000 mm | ||
Flexo Stack
Stack Flexographic Presses are those where the printing units are stacked on top of each other. The individual impression cylinders located in each station are called the platen rollers.
The main print frame consists of several individual color stations. These stations are driven by gears supported by the press frame or by servo motors. The most common configuration for stacked presses is a six-color press; however, stacked presses can have one to eight color stations.
You can print on both sides of a substrate using a stacked press. Small runs can also be printed on the stacked press.
