Code EK000400
1.800 mm Biella Shrunk Process NANOMIX
BIELLA SHRUNK PROCESS
FINISHING STEAMING
TEXTILE MACHINE

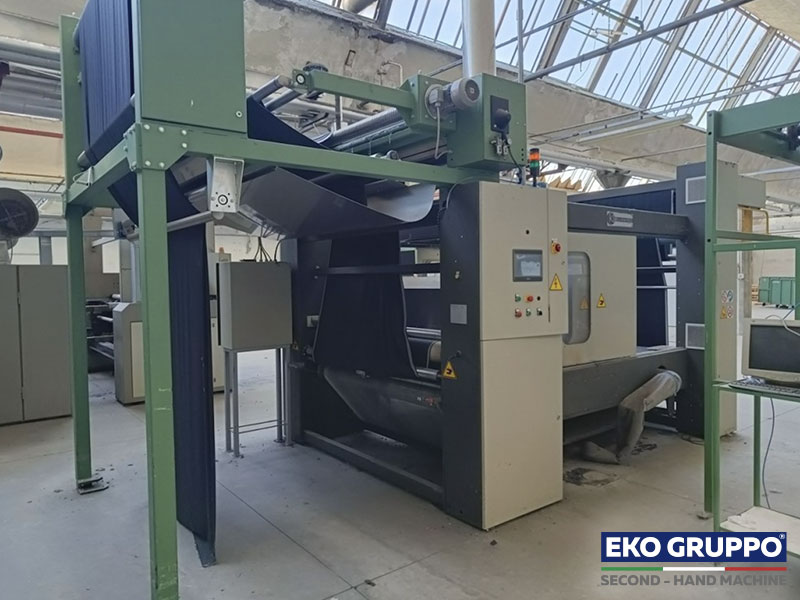

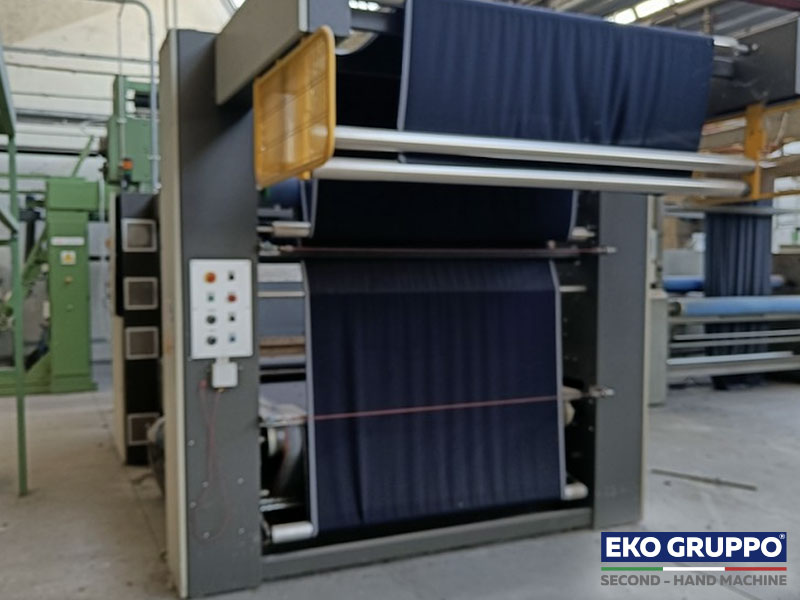

NANOMIX is a compact low consumption finishing machine produced by Biella Shrunk Process whose process principle is essentially based on steam, water and air which are mixed inside a newly designed vaporization tunnel.
This finishing steaming second-hand machine assures an optimal fabric relaxing with high shrinkage results to grant an ideal dimensional stability.
Besides with the "Hot & Humid" system, the treated fabric shows a moisture regain increase instead of the typical over-drying, which takes place in traditional finishing machinery.
Manufacturer
Biella Shrunk Process
Year of construction
2011
Model
NANOMIX
Working width
1.800 mm
Raw material
Textile
Condition
Finishing used machine
Technical Data | |||
|---|---|---|---|
REFERENCE MACHINE | NANOMIX 1800 | ||
TYPE | FINISHING STEAMING MACHINE | ||
WORKING WIDTH | 1.800 mm | ||
ROLLER WIDTH | 2.000 mm | ||
TOWING GROUP WITH J-BOX | BRAND CORINO | ||
VAPORIZE | NANOMIX | ||
TECHNOLOGY | Hot & Humid | ||
This finishing machine model is still produced by BIELLA SHRUNK PROCESS company.
Finishing Textile Machines
Textile finishing is a process that convert the woven or knitted fabrics into a usable material and more specifically to any process performed after dyeing the yarn or fabric to improve the look, performance or “hand feel” of the finished textile product or clothing. This not only provides a nice appearance, but it also protects the fabric from UV damage, stains, and other elements that would otherwise damage it.
Basically, textile finishing is a chemical and mechanical processes used on textiles after they have been made.
There are different types of finishing:
- Mechanical finishing: refers to machine finishes such as embossing, heat setting, sanforizing, sheering, various, luster imparting, surface finishes, and glaze finishes.
- Chemical finishing: may be applied to cotton fabrics to produce low flammability, crease resist and other special effects.
- Calendering: is the third important mechanical process, in which fabrics are sandwiched between two heated rollers and pressed together to generate smooth, polished or embossed effects. This is common in the production of sheets and pillowcases, but it’s also used in the production of shirts, pants, and other garments.
- Smoothing: refers to a process of smoothing out the fabric and ironing it flat.
- Shrinking: Mechanical shrinking is a process whereby the fabric is forced to shrink width and/or lengthwise, creates a fabric in which any residual tendency to shrink after subsequent laundering is minimal. This is very important in the production of jeans, since the fabric needs to be taut, but not too taut.
