Code EK000177

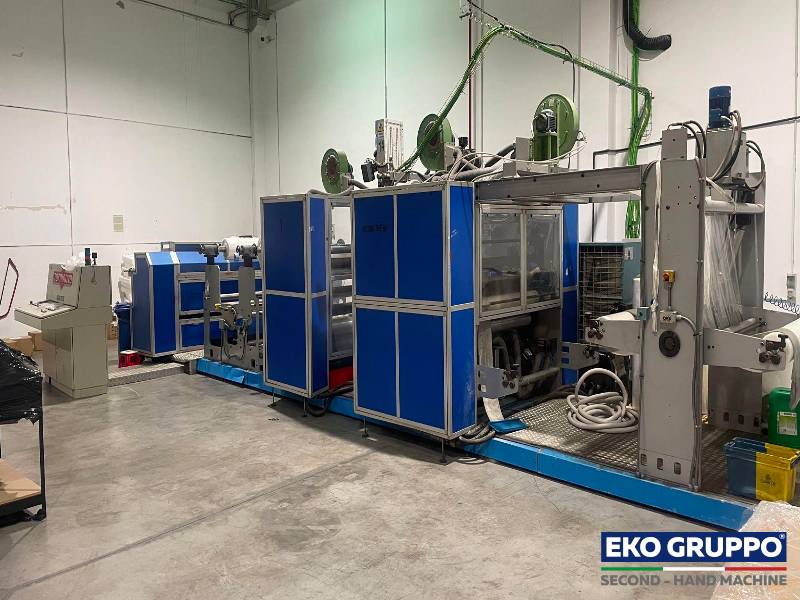

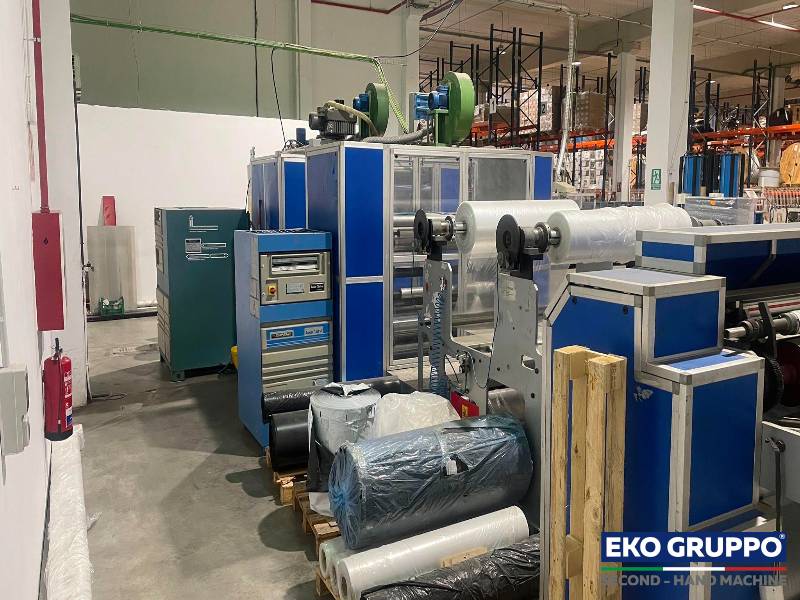

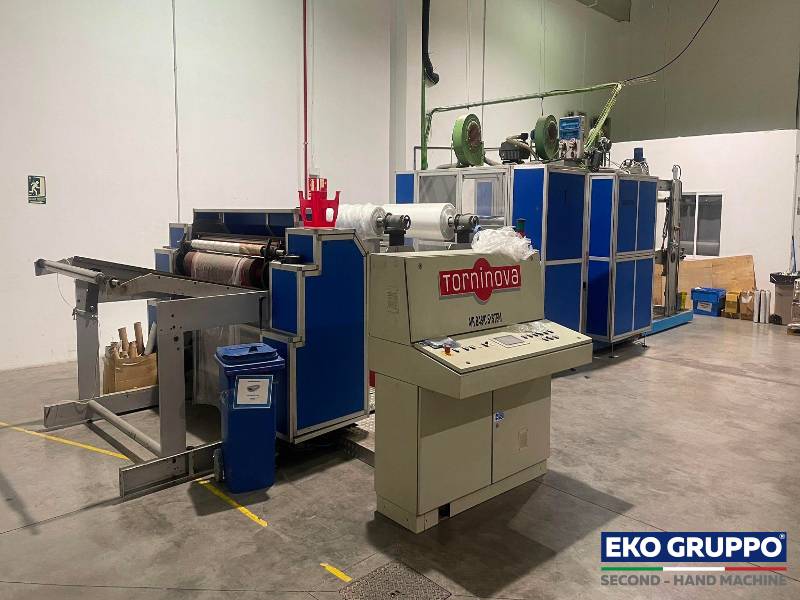

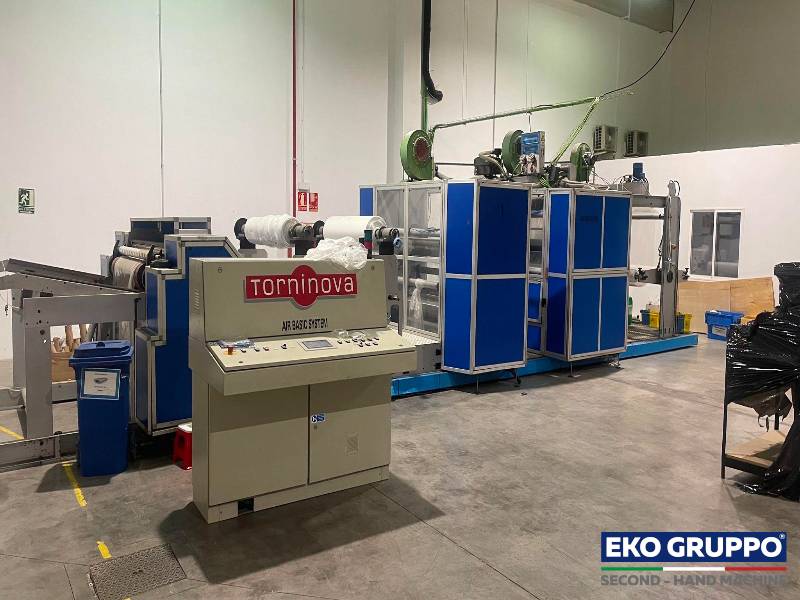

1250 Torninova Air Basic Bubble film extrusion line
TORNINOVA
AIR BUBBLE FILM EXTRUSION LINES
AIR BASIC is an offline system meant for processing LDPE rolls to produce air bubble film of various bubble sizes which is normally used by companies for technical packaging and reflective insulation.
This used AIR BASIC bubble film extrusion line reduces energy and transport costs by producing on site the bubble wrap film needed by the company.
Manufacturer
Torninova
Year of construction
2004
Number of layers
3
Raw material
LDPE and coated materials
Film width
1.250 mm
Condition
Second-hand machinery
AIR BASIC bubble wrap film used machine
Torninova, off-line system for bubble film production
AIR BASIC bubble wrap film machine produced by Torninova helps in better management of inventory and is highly versatile. This used machinery is highly versatile and a production changeover without wasting material at restart can be done quickly. With the help of its on-board network connection, machine functions can be remotely monitored via internet.
Technical data | |||
|---|---|---|---|
REFERENCE MACHINE |
1,25 m / three layers
| ||
STARTING STANDARD MATERIAL | Rolls of LDPE Film degree 1,5-2,2 (also blended with LLDPE about 10/20%) | ||
FILM LAYERS | 2, 3, 4 | ||
DIAMETER OF REWINDING ROLL (MAX) | 2.000 mm | ||
THERMOFORMING PROCESS | By hot air | ||
NET FINISHED AIR BUBBLE FILM WIDTH | 1.250 mm | ||
FINISHED AIR BUBBLE FILM WEIGHT |
Min 40 g/m2 - max 300 g/m2
| ||
MAX PRODUCTION SPEED | 35 m/min | ||
AVERAGE POWER CONSUMPTION | 50 kW-h | ||
STANDARD ELECTRIC VOLTAGE | V400/3Ph/50Hz | ||
DIAMETER OF STARTING ROLLS (MAX) | 500 mm | ||
