Code EK000204
1500 Colines COEX Air Bubble Wrap Film Extrusion Line
COLINES
AIR BUBBLE FILM EXTRUSION MACHINES
COLINES air bubble wrap film line processes LDPE pellets to produce a wide range of excellent-quality air bubble films at moderate outputs.
With its simplified structure and no-frills finishing, the COLINES plant is a suitable solution for medium-to-small market necessities.

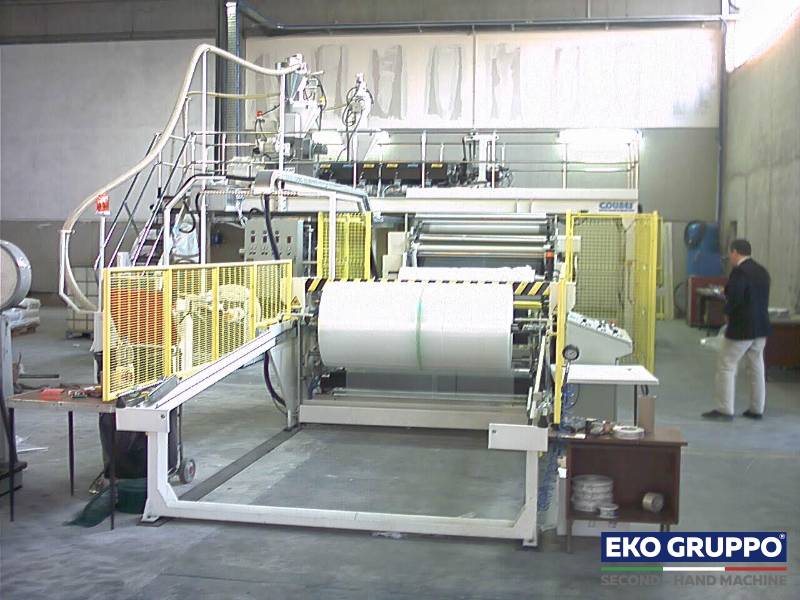

COLINES Air Bubble wrap film line

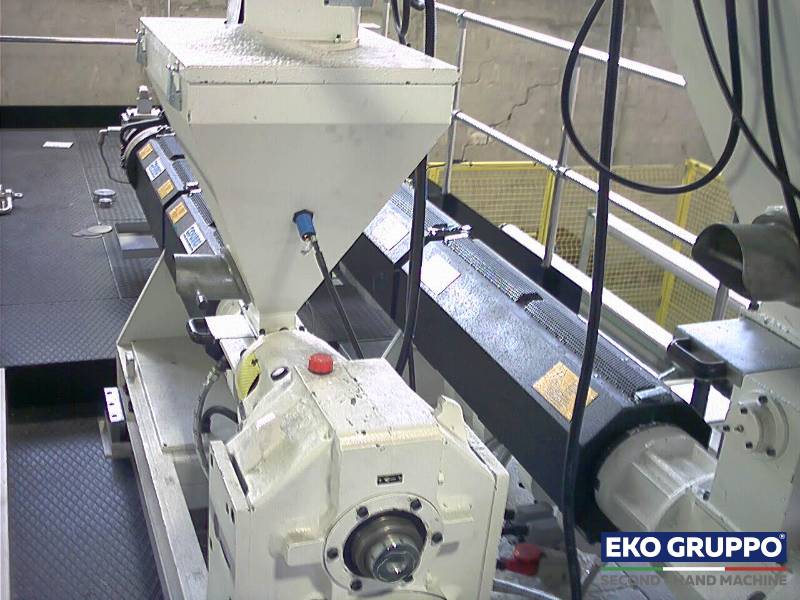

Colines, in-line COEX extruder for bubble film production
The Colines production process of air bubble wrap film (Air bubble film packaging, Reflective bubble foil insulation, Bubble solar pool cover) is completely automatic and fully controllable by a single, un-skilled operator.
This machinery allows a new bracket of customers (e.g. air bubble film distributors and converters) to enter and learn the production market while substantially containing their up-front investment costs.
This used plant is also ideal for air bubble film manufacturers intending to relocate production facilities directly in distant, but profitable, new markets, while drastically reducing transport costs and amortizing, in the short-term, the initial investment.
Technical data | |||
---|---|---|---|
REFERENCE MACHINE | COEX 1,5 m / three layers | ||
STARTING STANDARD MATERIAL | pellets of LDPE and LLDPE, mLLDPE | ||
EXTRUDERS CAPACITY (MAX) | 300 Kg/h | ||
FILM LAYERS | 2 (3,4 with the adoption of 3rd, 4th layer unit) | ||
NET FINISHED AIR BUBBLE FILM WIDTH | 1.500 mm | ||
THERMOFORMING PROCESS | With cast extruders | ||
FINISHED AIR BUBBLE FILM WEIGHT |
Min 40 g/m2 - max 300 g/m2
| ||
FORMING ROLLER DIAMETER | Ø 450 mm | ||
MAX PRODUCTION SPEED | 50 mt/min | ||
DIAMETER OF REWINDING ROLL (MAX) | 1.000 mm | ||
AVERAGE ABSORBED POWER FOR BASIC PLANT | 200 kW | ||
STANDARD BUBBLE SIZE | Ø 10 x 4 mm | ||
CAST DIE | One die with double delivery |
