Code EK000212
1600 Colines Air Bubble Film Extrusion Line
COLINES
AIR BUBBLE FILM EXTRUSION MACHINES
COLINES air bubble wrap film line processes LDPE pellets to produce a wide range of excellent-quality air bubble films at moderate outputs.
With its simplified structure and no-frills finishing, the COLINES plant is a suitable solution for medium-to-small market necessities.
Manufacturer
Colines
Year of construction
1996
Number of layers
3
Raw material
LDPE pellets
Film width
1.600 mm
Condition
Second-hand machinery

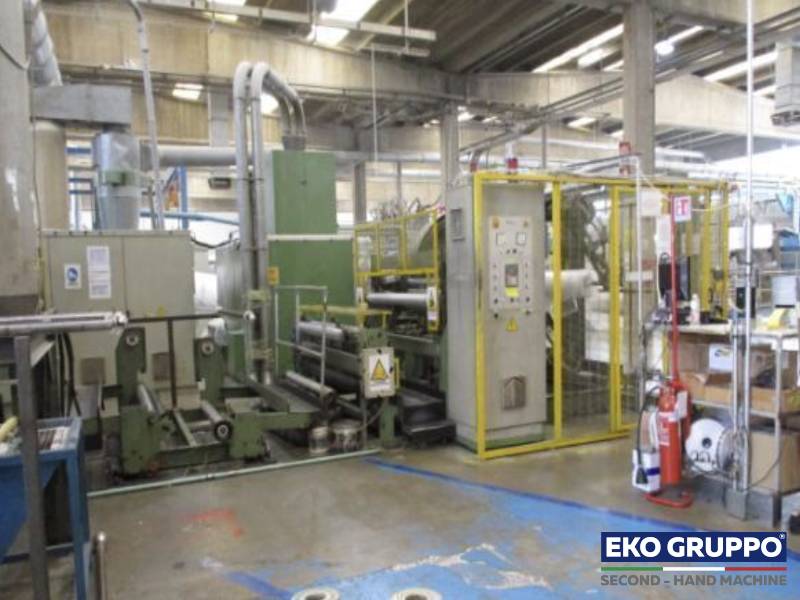

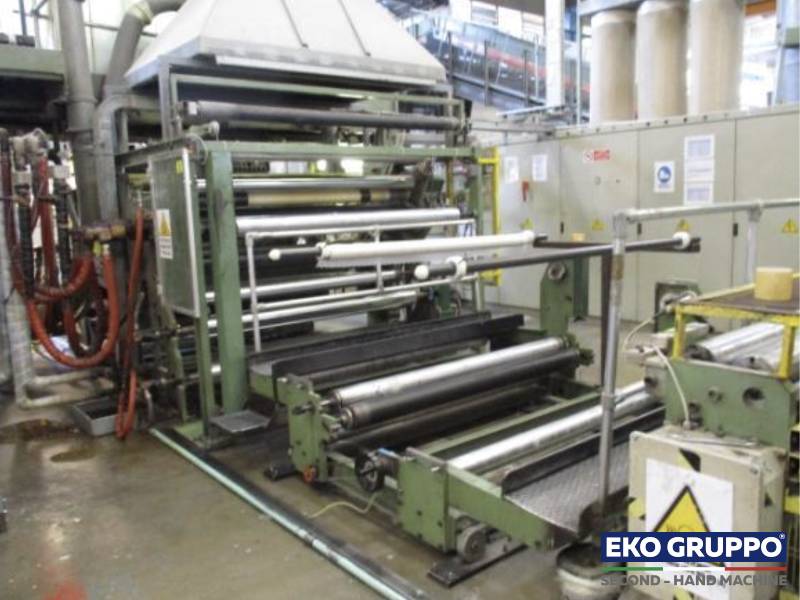

COLINES Air Bubble wrap film line
Colines, in-line mono extruder for bubble film production
The Colines production process of air bubble wrap film (Air bubble film packaging, Reflective bubble foil insulation, Bubble solar pool cover) is completely automatic and fully controllable by a single, un-skilled operator.
This machinery allows a new bracket of customers (e.g. air bubble film distributors and converters) to enter and learn the production market while substantially containing their up-front investment costs.
This used plant is also ideal for air bubble film manufacturers intending to relocate production facilities directly in distant, but profitable, new markets, while drastically reducing transport costs and amortizing, in the short-term, the initial investment.
Technical data | |||
|---|---|---|---|
REFERENCE MACHINE | 1,6 m / three layers | ||
STARTING STANDARD MATERIAL | pellets of LDPE and LLDPE, mLLDPE | ||
EXTRUDER CAPACITY (MAX) | 130 Kg/h | ||
DIAMETER OF SCREW EXTRUDER |
Ø 80 mm L/D=30
| ||
FILM LAYERS | 2 (3,4 with the adoption of 3rd, 4th layer unit) | ||
NET FINISHED AIR BUBBLE FILM WIDTH | 1.600 mm | ||
THERMOFORMING PROCESS | With cast extruders | ||
FINISHED AIR BUBBLE FILM WEIGHT |
Min 40 g/m2 - max 300 g/m2
| ||
FORMING ROLLER DIAMETER | Ø 270 mm | ||
MAX PRODUCTION SPEED |
30 mt/min
| ||
DIAMETER OF REWINDING ROLL (MAX) | 1.000 mm | ||
AVERAGE ABSORBED POWER FOR BASIC PLANT | 80 kW | ||
STANDARD BUBBLE SIZE | Ø 10 x 4 mm | ||
CAST DIE | One die with double delivery | ||
