Code EK000176
3 Layers Torninova 1600 Polyboll Air Bubble Wrap Film Line
TORNINOVA
AIR BUBBLE FILM EXTRUSION MACHINES
POLYBOLL air bubble wrap film line processes LDPE pellets to produce a wide range of excellent-quality air bubble films at moderate outputs.
With its simplified structure and no-frills finishing, the POLYBOLL plant is the most suitable solution for medium-to-small market necessities.
Manufacturer
Torninova
Year of construction
2011
Number of layers
3
Raw material
LDPE pellets
Film width
1.600 mm
Condition
Used in good condition

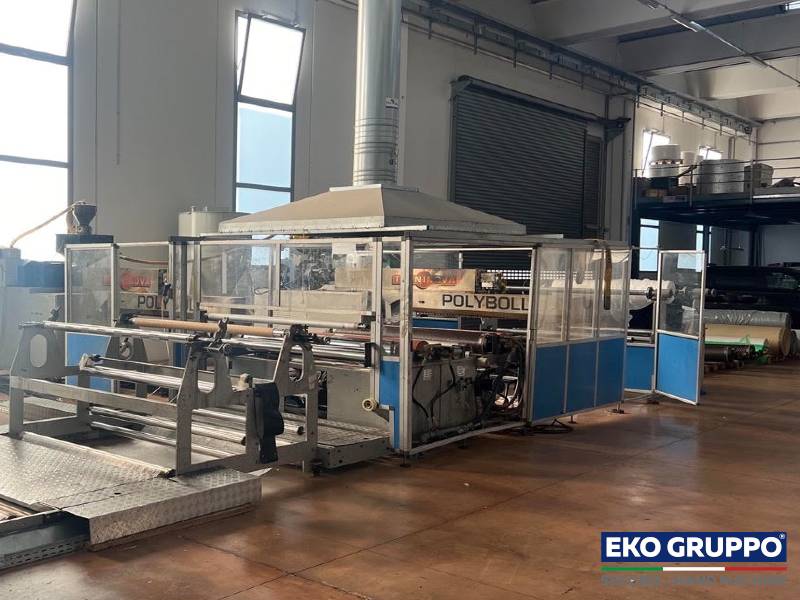

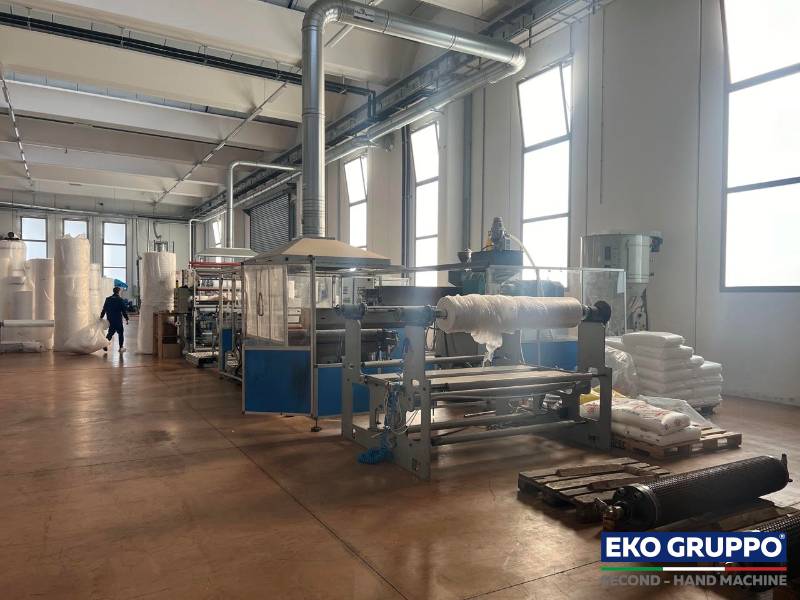

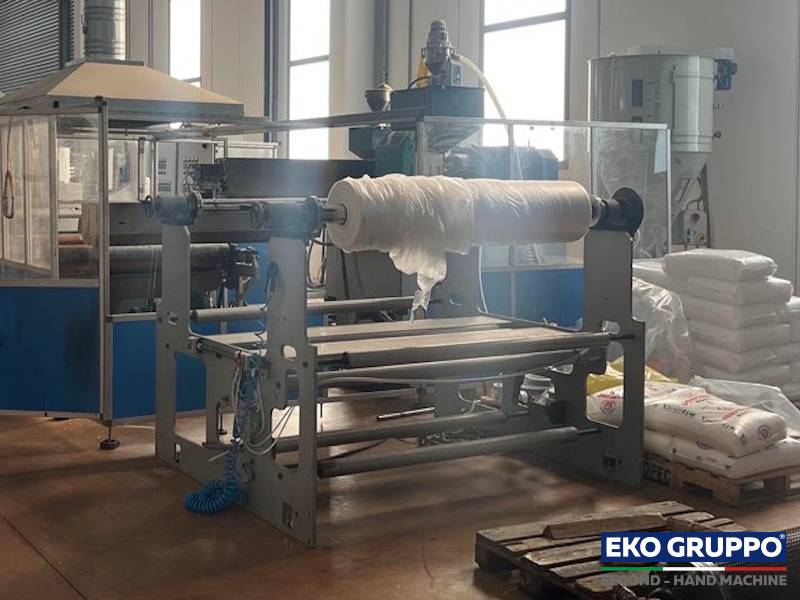

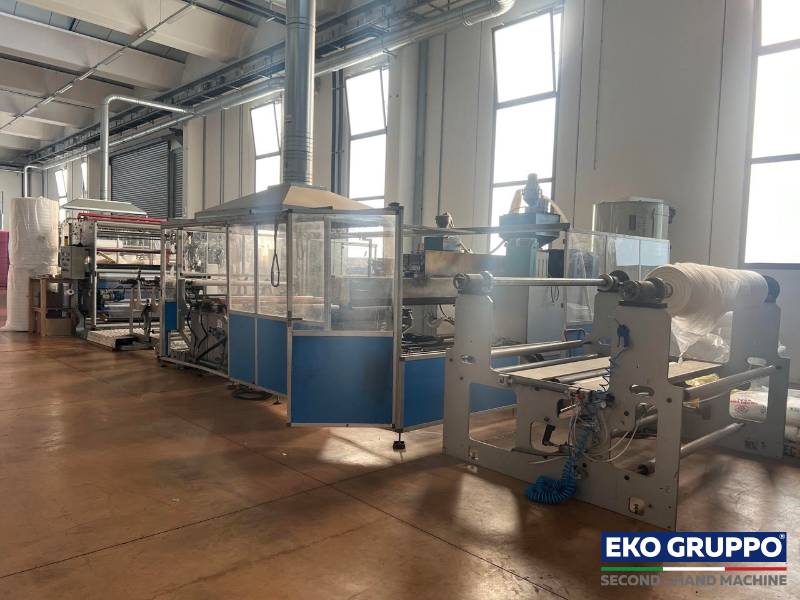

POLYBOLL Air Bubble wrap film line
Torninova, in-line mono extruder for bubble film production
The Polyboll production process of air bubble wrap film (Air bubble film packaging, Reflective bubble foil insulation, Bubble solar pool cover) is completely automatic and fully controllable by a single, un-skilled operator.
This machinery allows a new bracket of customers (e.g. air bubble film distributors and converters) to enter and learn the production market while substantially containing their up-front investment costs.
The Polyboll plant is also ideal for air bubble film manufacturers intending to relocate production facilities directly in distant, but profitable, new markets, while drastically reducing transport costs and amortizing, in the short-term, the initial investment.
Technical data | |||
|---|---|---|---|
REFERENCE MACHINE | 1,6 m / three layers | ||
STARTING STANDARD MATERIAL | pellets of LDPE and LLDPE, mLLDPE | ||
EXTRUDER CAPACITY (MAX) | 130 Kg/h 50 Kg/h | ||
DIAMETER OF SCREW EXTRUDER | Ø 80 mm L/D=30 Ø 50 mm L/D=30 (third layer) | ||
FILM LAYERS | 2 + 1 + 1 | ||
NET FINISHED AIR BUBBLE FILM WIDTH | 1.630 mm | ||
THERMOFORMING PROCESS | With cast extruders | ||
FINISHED AIR BUBBLE FILM WEIGHT | Min 35 g/m2 - max 400 g/m2 | ||
FORMING ROLLER DIAMETER | Ø 270 mm | ||
MAX PRODUCTION SPEED |
30 mt/min
| ||
DIAMETER OF REWINDING ROLL (MAX) | 1.000 mm | ||
AVERAGE ABSORBED POWER FOR BASIC PLANT | 80 kW | ||
STANDARD BUBBLE SIZE | Ø 10 x 4 mm | ||
CAST DIE | One die with double delivery | ||
