Code EK000211

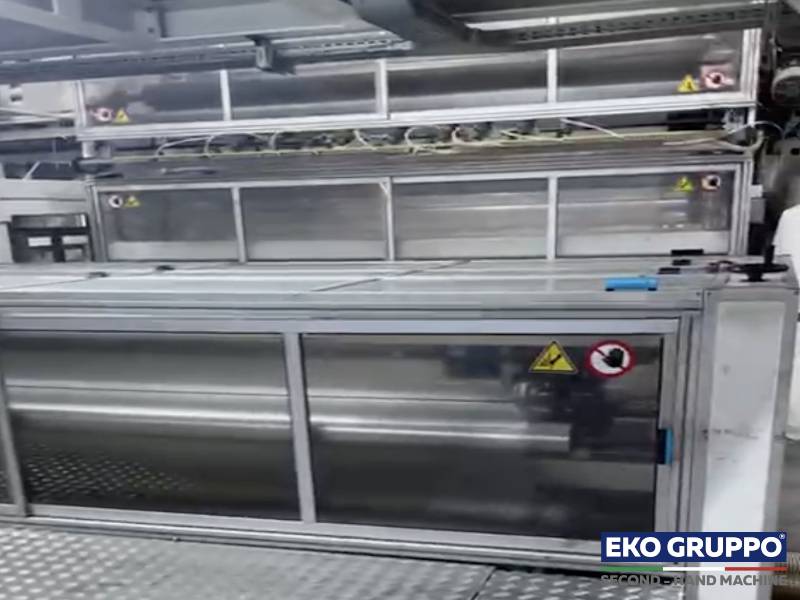

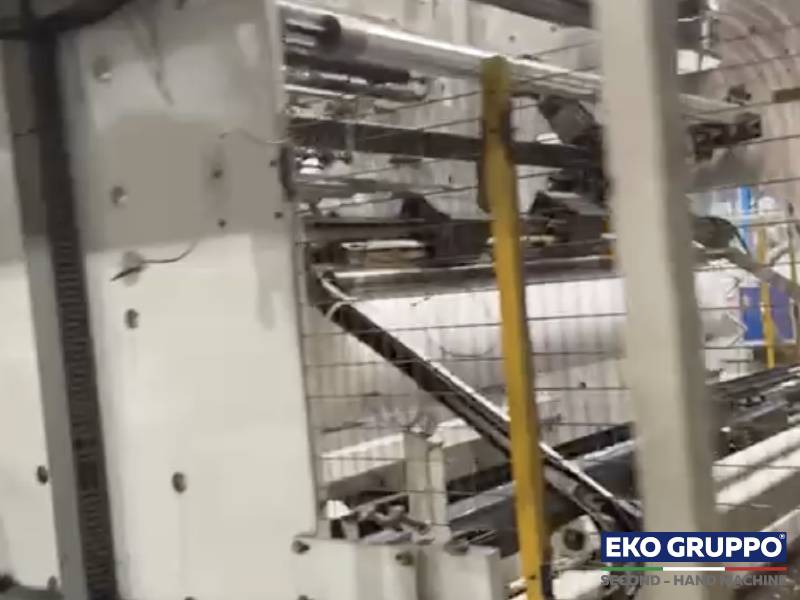

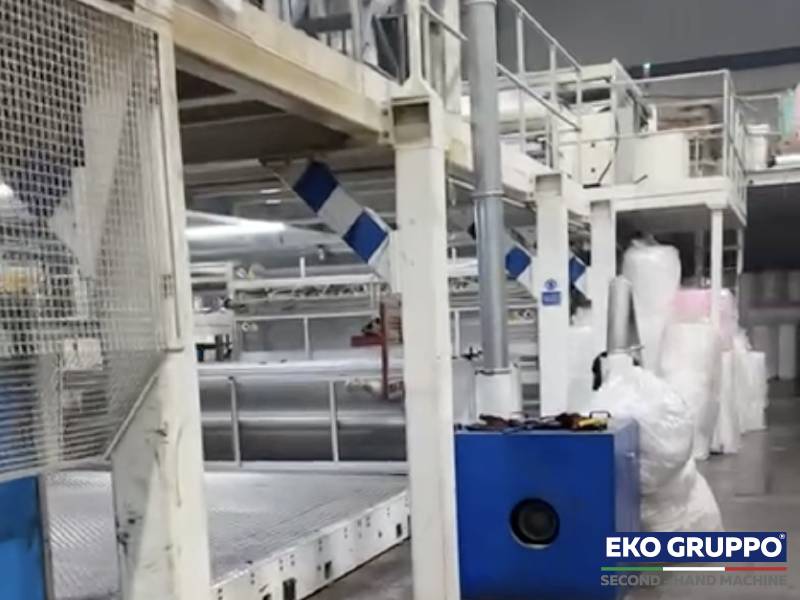

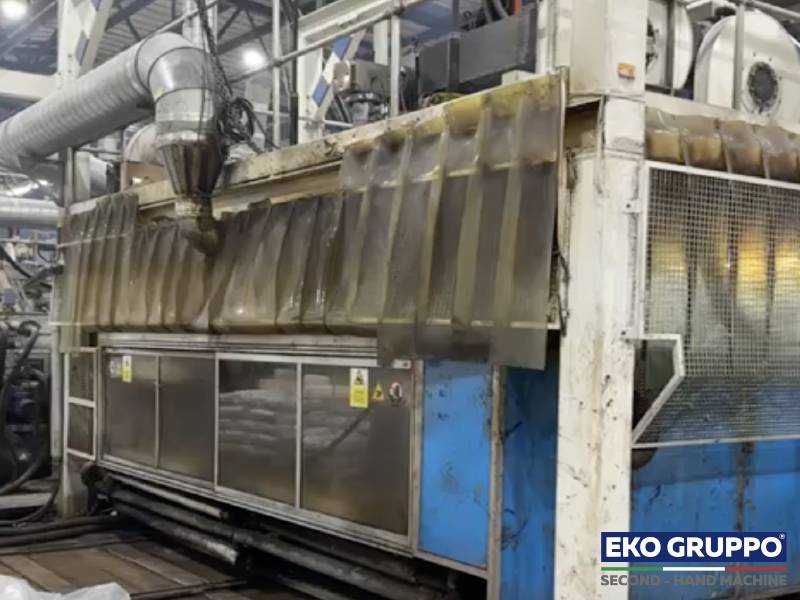

3000 mm Torninova Power Bubble
TORNINOVA
AIR BUBBLE FILM EXTRUSION LINES
Power Bubble, a powerful and versatile pluriball machinery, can produce various types of bubble film depending on the formulation of the LDPE pellets used: air bubble film packaging, reflective bubble foil insulation, bubble solar pool cover. In fact, starting from LDPE pellets blended with HDPE, PP, hexene - octene LLDPE and mLLDPE, this universal single-screw extruder produces high-performance, low thickness materials.
POWER BUBBLE wrap film used machine
Torninova, in-line mono extruder for pluriball production
In the Power Bubble system, the forming cylinder is mounted on mobile structure (motorized and controlled by PLC) in both the directions for the regulation of the materials deliver for the flat dies and for its fast interchangeability; this is thermoregulated by a water thermoregulation unit in order to maintain more constant its temperature.
A single operator can fully control the entire Power Bubble manufacturing process with the system's fully integrated touch screen controls. Using it's on board network connection, the plant's operation can be remotely monitored via internet.
Technical data | |||
---|---|---|---|
REFERENCE MACHINE | 3 m / three layers | ||
STANDARD PRODUCTION SIZE | 650 kg/h (75 g/m2) - 11.250 m2/h (40 g/m2) | ||
DIAMETER OF SCREW EXTRUDER | Ø 104 mm L/D=32 | ||
AVERAGE POWER CONSUMPTION | 170 kW-h | ||
RAW MATERIAL | pellets of LDPE, LLDPE, mLLDPE and HDPE | ||
THERMOFORMING PROCESS | With cast extruders | ||
WEB WIDTHS | 3 m | ||
FINISHED AIR BUBBLE FILM WEIGHT | Min 28 g/m2 - max 600 g/m2 | ||
MAX PRODUCTION SPEED | 120 m/min | ||
FORMING ROLLER DIAMETER | Ø 450 mm | ||
STANDARD BUBBLE SIZE | Ø 10 x 4 mm | ||
CAST DIE | Double cast die, one for the bubble layer and one for the base layer complete of distribution block | ||
OPTIONAL EQUIPMENT | TRIPLEX winder, DUPLEX PLUS winder, VIR winder, Third layer extrusion lamination unit, Third layer diathermic oil lamination unit, Third layer hot-air lamination unit, Fourth layer unwinder, Perforation unit, Forming cylinders, Chiller unit |
