Code EK000208

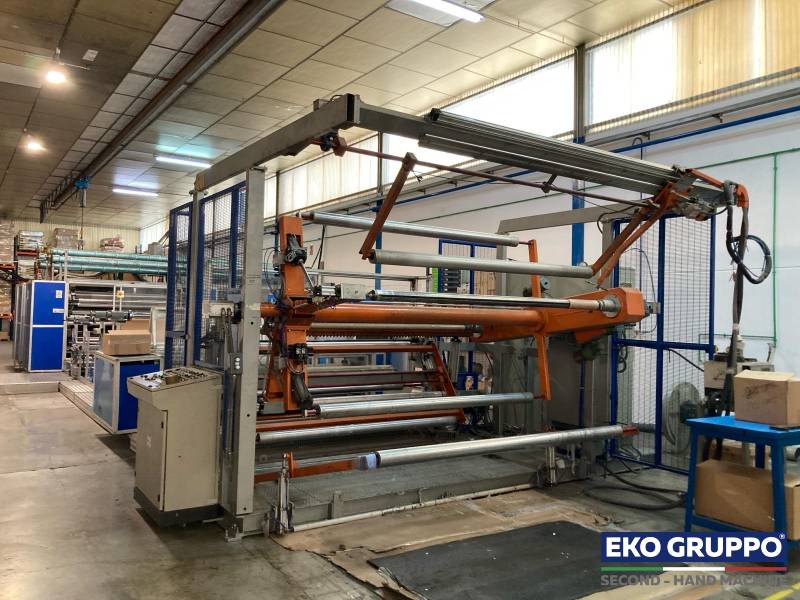

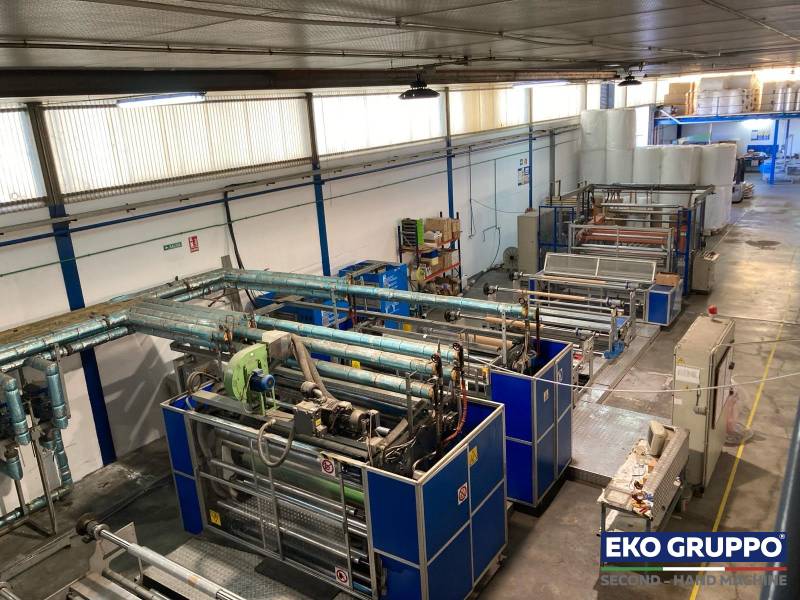

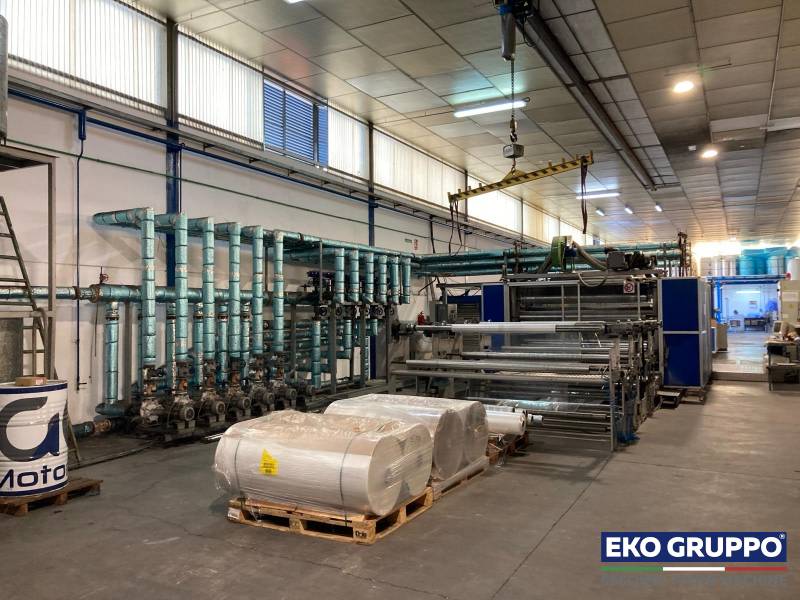

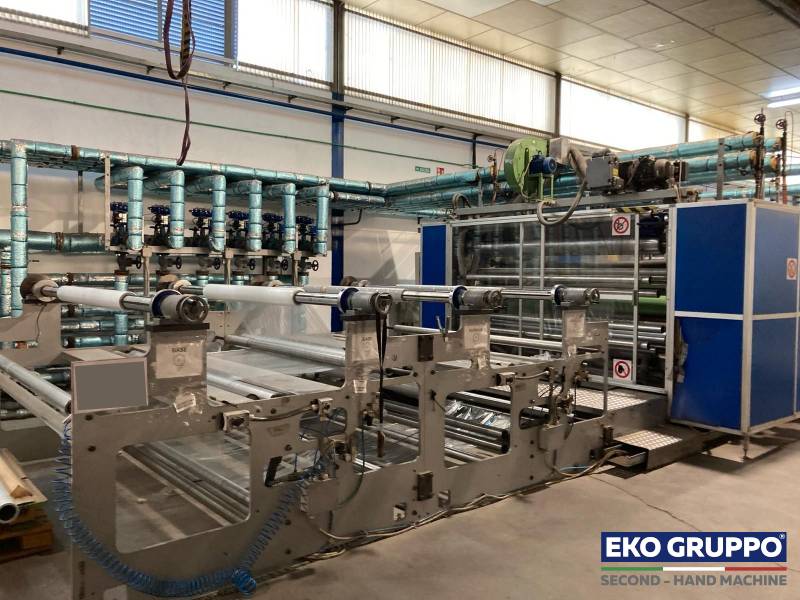

5 Layers 2000 Torninova Mac Bubble film extrusion line
TORNINOVA
AIR BUBBLE FILM EXTRUSION LINES
MAC BUBBLE is an offline system meant for processing LDPE rolls to produce air bubble film of various bubble sizes which is normally used by companies for technical packaging and reflective insulation.
This used MAC BUBBLE bubble film extrusion line reduces energy and transport costs by producing on site the bubble wrap film needed by the company.
Manufacturer
Torninova
Year of construction
2005
Number of layers
5
Raw material
LDPE and coated materials
Film width
2.000 mm
Condition
Second-hand machinery
MAC BUBBLE Air bubble wrap film used machine
Torninova, off-line system for bubble film production
The MAC BUBBLE is a traditional off-line system that processes LPDE for high-output air bubble film production. A thermoform process laminates two individual films through the Tefloncoated cylinders. The cylinders are heated by a diathermic oilcircuit connected to electric heating units. Thus enabling a high-speed air bubble film production with superior lamination quality.
The system has a non-board network connections that permits machine function to be monitored using the internet. The systems modular configurations are utilized for helpful upgrades like a perforation unit, a 3rd layer lamination unit and many more.
The maximum production speed of the unit is 65 m/min. Its forming roller diameter is 450 mm.
Technical data | |||
|---|---|---|---|
REFERENCE MACHINE | 2 m / five layers | ||
STARTING STANDARD MATERIAL | Rolls of LDPE Film degree 1,5-2,2 (also blended with LLDPE about 10/20%) | ||
FILM LAYERS | 2, 3, 4, 5 | ||
FORMING ROLLER DIAMETER (MAX) | 450 mm | ||
THERMOFORMING PROCESS | By diathermic oil | ||
NET FINISHED AIR BUBBLE FILM WIDTH | 2.000 mm | ||
FINISHED AIR BUBBLE FILM WEIGHT |
Min 40 g/m2 - max 300 g/m2
| ||
MAX PRODUCTION SPEED | 65 m/min | ||
AVERAGE POWER CONSUMPTION | 50 kW-h | ||
STANDARD ELECTRIC VOLTAGE | V400/3Ph/50Hz | ||
DIAMETER OF REWINDING ROLL (MAX) | 1.300 mm | ||
