Code EK000141
Omicron Coex 3 Blown Film Extruder
OMICRON
BLOWN FILM EXTRUSION LINES
The used Omicron Coex 3 Blown Film Extruder is a compact line for a top quality film production with a range up to 350 kg/h and a film width of 1.600 mm. This production line of 3-layer co-extrusion blown film exrusion line produced by OMICRON can be used for the production of a wide range of general packaging films as it allows to achieve a high output and a significant level of productivity and flexibility.
Manufacturer
Omicron
Year of construction
1992
Number of layers
3
Film width
1.600 mm
Raw material
LLDPE, LDPE, LLD, HDPE, PP, BORSTAR, METALLOCENE, BORCENE
Condition
Used in good condition
Technical Data | |||
|---|---|---|---|
REFERENCE MACHINE | OMICRON COEX 3 (65/65/65) | ||
MATERIALS | LLDPE, LDPE, LLD, HDPE, PP, BORSTAR, METALLOCENE, BORCENE | ||
FILM WIDTH (MAX) | 1.600 mm | ||
NUMBER OF EXTRUDERS | 3 | ||
EXTRUDERS | 65 mm + 65 mm + 65 mm | ||
DIE DIAMETER | 350 mm | ||
ROLL DIAMETER | up to 1.000 mm | ||
GAP | 1,5 mm | ||
NET OUTPUT (MAX) | 350 Kg/h | ||
CORONA TREATMENT | FERRARINI&BENELLI | ||
TAKE-OFF UNIT | MOTOR AC WITH INVERTER | ||
Blown Film Extrusion Machines
The Blown film extrusion lines are used to extrude plastic films for flexible packaging industry.

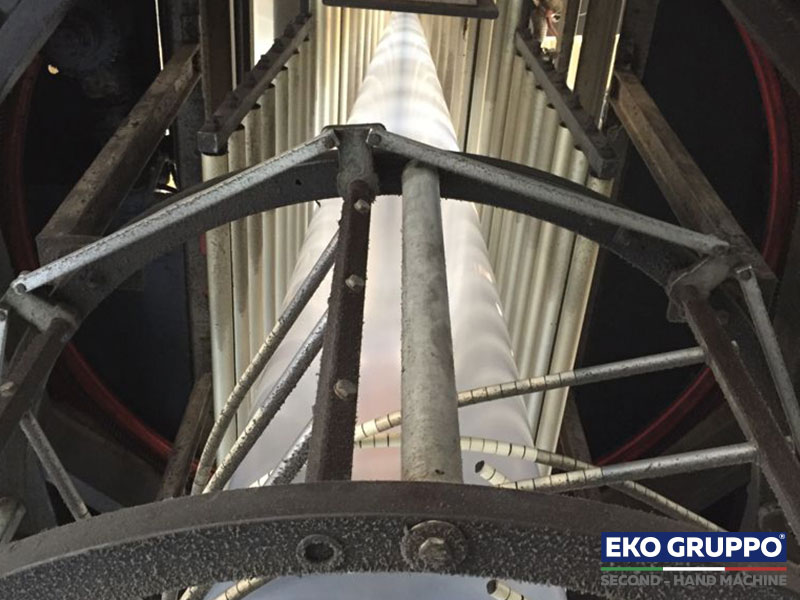

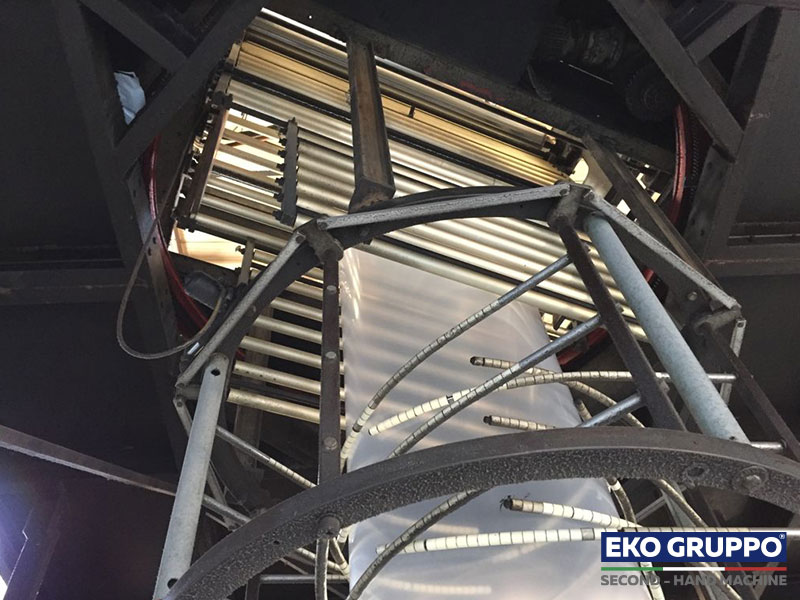

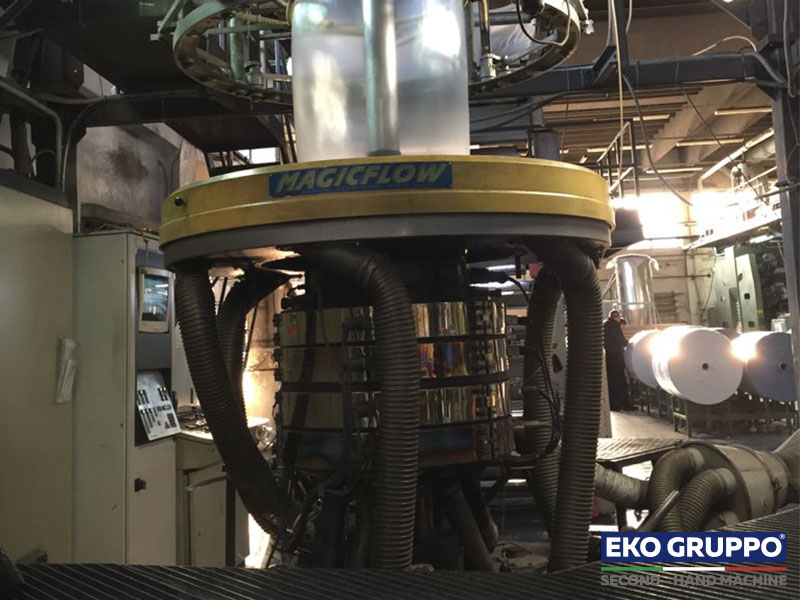

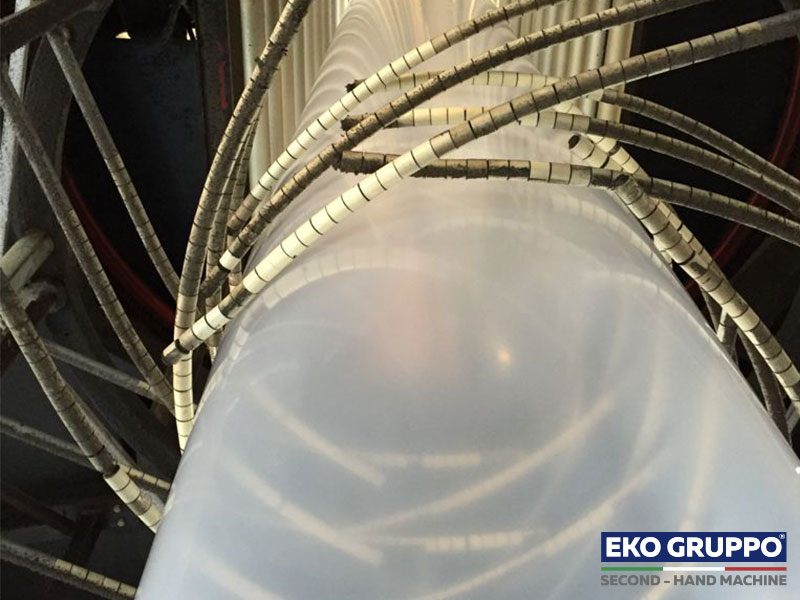

The process begin commonly through the melt of the granulates into an extruder and pushed through a circular die modeling it in the form of a tube. Subsequently This tube is carefully inflated and simultaneously cooled in its interior and on the exterior surface through the use of an air ring. A set of collapsing guides are then used to collapse the bubble into two, more defined, layers within closer proximity, a series of nip rollers flatten the layers together to form a two-layered plastic film that is then wound onto a cylindrical roll for packaging purposes.
Blown film extrusion is also versatile and able to manufacture a variety of single or multi-layer films with a range of film thickness and width. Raw material most used are low density polyethylene (LDPE) and High density polyethylene (HDPE).
Film produced with this kind of line have most applications from film for bags, to shrink film, lamination film, stretch hoods, PE film for packaging, barrier and many others.
The principal advantages of manufacturing film by this process include the ability to:
- produce tubing (both flat and gussetted) in a single operation;
- adjust the film width and thichness by control of the volume of air in the bubble, the output of the extruder and the speed of the haul-off;
- eliminate end effects such as edge bead trim and non uniform temperature that can result from flat die film extrusion;
- capability of biaxial orientation (allowing uniformity of mechanical properties);
- blown film extrusion can be used for the manufacture of co-extruded, multi-layer films for high barrier applications such as food packaging.
