Code EK000170
1400 JWEL Sheet Extrusion Film Line
JWEL
SHEET EXTRUSION MACHINES

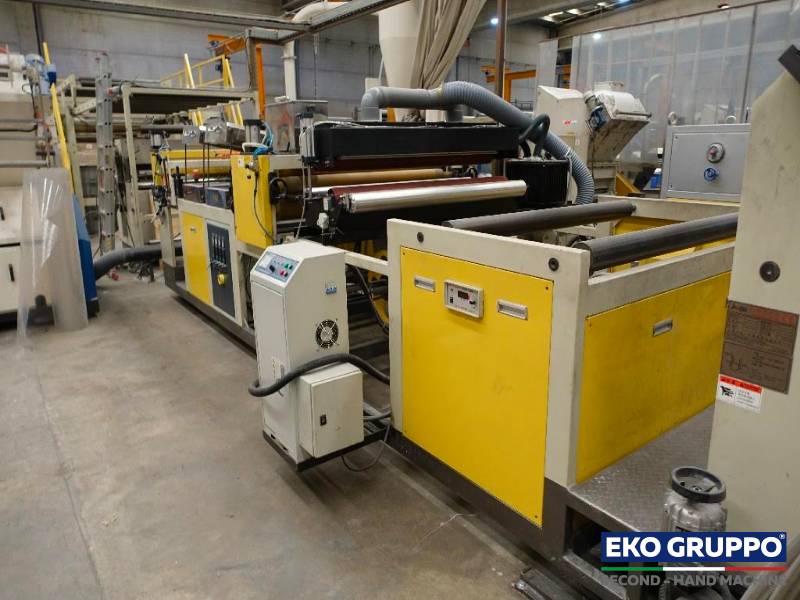

The 1400 JWEL Sheet Extrusion Film Line allow to produce foils and sheets in every kind of plastic material. This second-hand Sheet Extrusion Film Machine BP1717-139 Multilayer model gives to customers versatile sheets film production capability with a film width of 1.400 mm and an output rate of up to 600 kg/h.
The change of the rollers is very rapid.
Manufacturer
JWEL
Year of construction
2019
Number of layers
2/3
Raw material
PET, RPET
Film width
1.400 mm
Condition
Second-hand Machine
Technical Data | |||
|---|---|---|---|
REFERENCE MACHINE | BP1717-139 | ||
MATERIALS | PET, RPET | ||
FILM WIDTH (MAX) |
1.400 mm
| ||
NUMBER OF EXTRUDERS | 2 | ||
NET OUTPUT (MAX) | 600 Kg/h | ||
DIE | 1.400 mm | ||
NUMBER OF LAYERS | 2/3 | ||

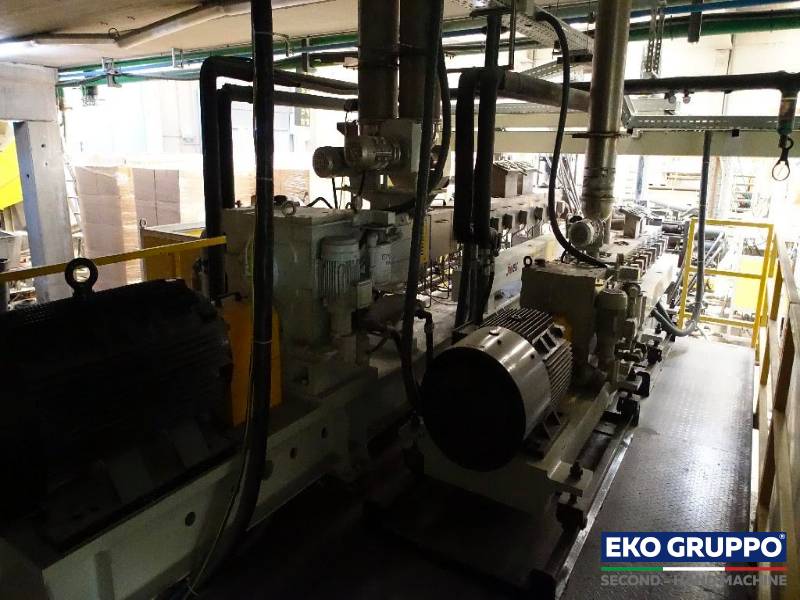

EXTRUDER CONFIGURATION | 75 mm and 52 mm No. 2 Twin Screw Extruders | ||
Sheet Extrusion Machines
The sheet extrusion is a common process to extrude plastic sheets or films that are too thick to be blown. In Particular, plastic granules including additives, are fed from the extruder hopper along a heated cylinder by a rotating screw, melted & homogenized and conveyed to the sheet die.

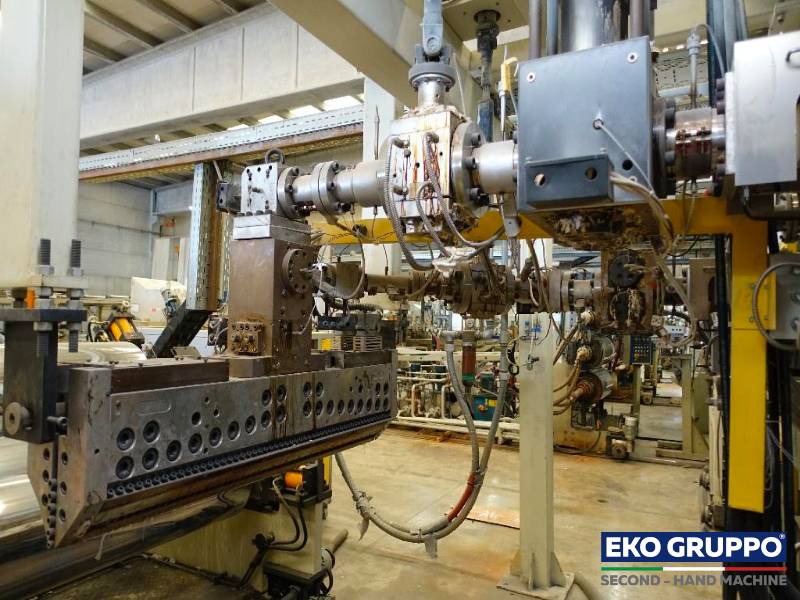

There are two types of dies used: T-shaped and coat hanger. The purpose of these dies is to reorient and guide the flow of polymer melt from a single round output from the extruder to a thin, flat planar flow.

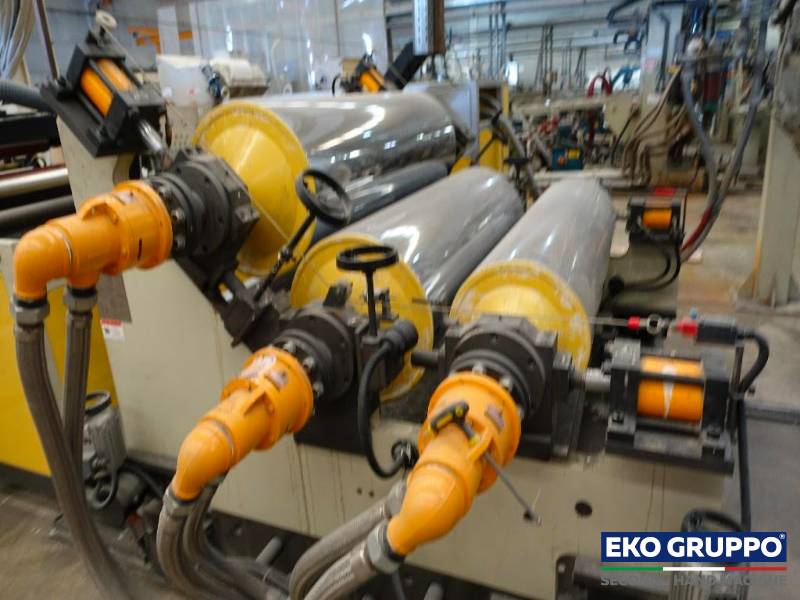

Depending on the application, there are a number of variations including the number and rotation of the screws, the screw and cylinder geometry and the structure. The die itself can be fed by several extruders extruding different thermoplastics, resulting in layered or concentric co-extrudates. The extrudate is then cooled via chill rolls and transported to slitting and winding stations.In sheet extrusion, these cooling rolls not only deliver the necessary cooling but also determine sheet thickness and surface texture.
Main Applications:
Printing and Converting
Food Packaging
Waterproofing
