Code EK000161

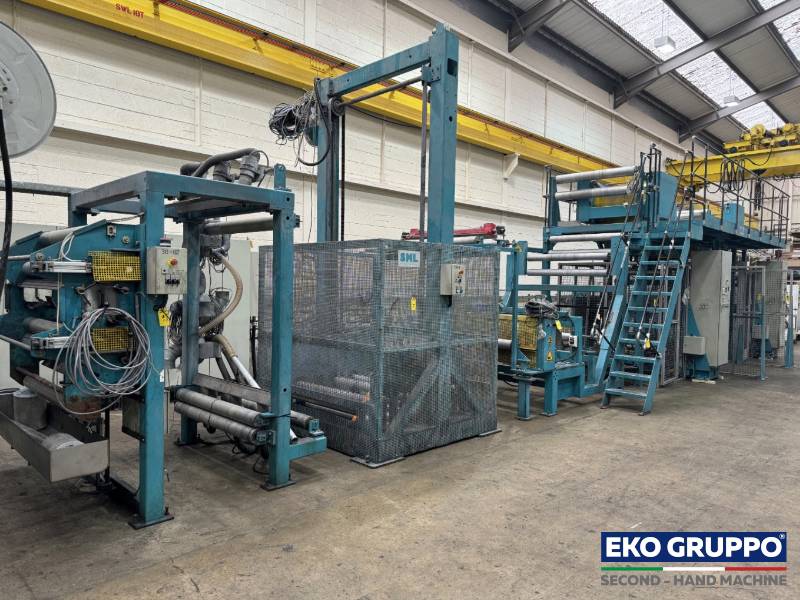

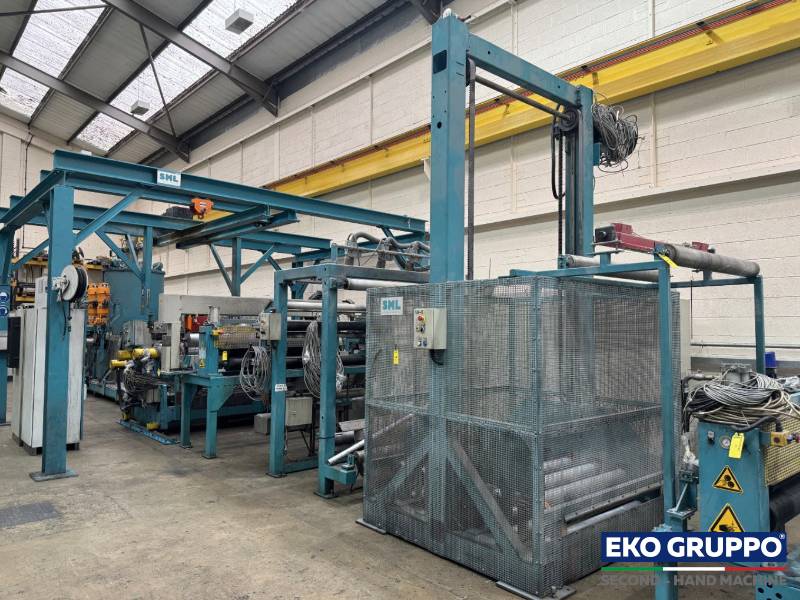

Vacurema 1200 SML PET Sheet Extrusion Film Line
SML
SHEET EXTRUSION MACHINES
The Vacurema 1200 SML PET Sheet Extrusion Film Line allow to produce foils and sheets in every kind of plastic material. This second-hand Sheet Extrusion Film Machine Vacurema 1200 model gives to customers versatile sheets film production capability with a film width of 1.200 mm and an output rate of up to 700 kg/h.
The change of the rollers is very rapid.
Manufacturer
SML
Year of construction
2004
Number of layers
2/3
Raw material
PET
Film width
1.200 mm
Condition
Second-hand Machine
Technical Data | |||
|---|---|---|---|
REFERENCE MACHINE | VACUREMA GM 120/1400/50 | ||
MATERIALS | PET | ||
FILM WIDTH (MAX) | 1.200 mm
| ||
NUMBER OF EXTRUDERS | 1 | ||
NET OUTPUT (MAX) | 700 Kg/h | ||
DIE | 1.300 mm | ||
NUMBER OF LAYERS | 2/3 | ||

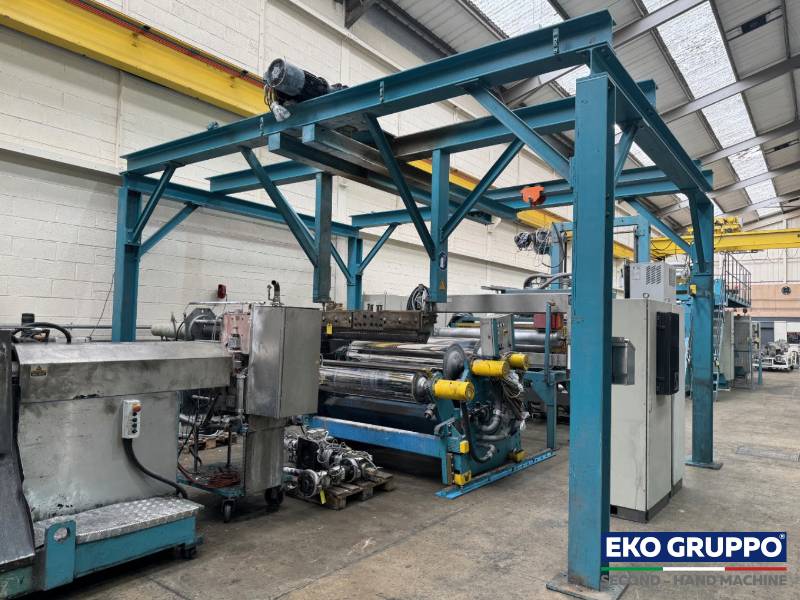

CALENDAR | 1.400 mm | ||

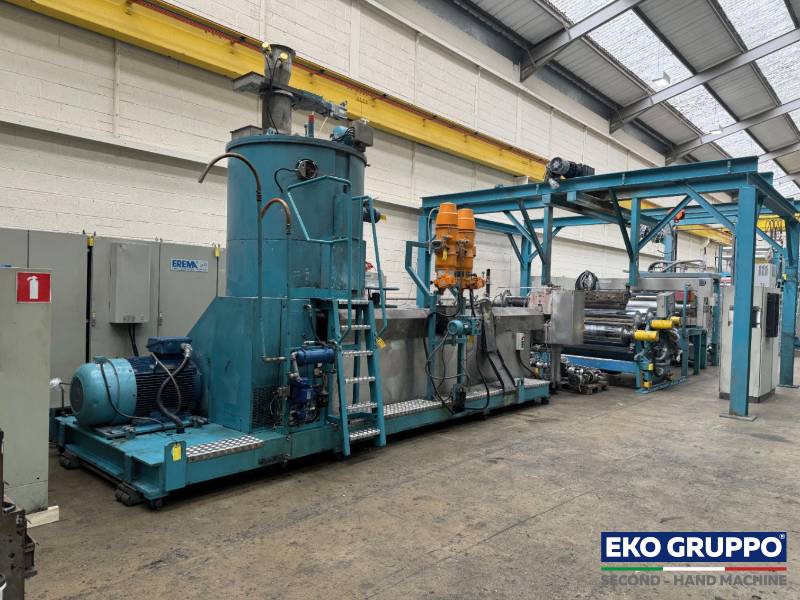

MAIN EXTRUDER SCREW DIAMETER | 120 mm 40 L/D Erema Extruder Model 120 TE-VSV | ||
THICKNESS RANGE | from 200 µm to 1.200 µm | ||
HAUL OFF WINDER | 1.400 mm | ||
WINDER | 1.200 mm / 1.000 mm Dual Double Turret Winder | ||
Sheet Extrusion Machines
The sheet extrusion is a common process to extrude plastic sheets or films that are too thick to be blown. In Particular, plastic granules including additives, are fed from the extruder hopper along a heated cylinder by a rotating screw, melted & homogenized and conveyed to the sheet die.
There are two types of dies used: T-shaped and coat hanger. The purpose of these dies is to reorient and guide the flow of polymer melt from a single round output from the extruder to a thin, flat planar flow.
Depending on the application, there are a number of variations including the number and rotation of the screws, the screw and cylinder geometry and the structure. The die itself can be fed by several extruders extruding different thermoplastics, resulting in layered or concentric co-extrudates. The extrudate is then cooled via chill rolls and transported to slitting and winding stations.In sheet extrusion, these cooling rolls not only deliver the necessary cooling but also determine sheet thickness and surface texture.
Main Applications:
Printing and Converting
Food Packaging
Waterproofing
