Code EK000202
Bi-Oriented PP Mitsubishi 4200 Film Extrusion Line
MITSUBISHI
BOPP BOPET PACKAGING FILM EXTRUSION LINES

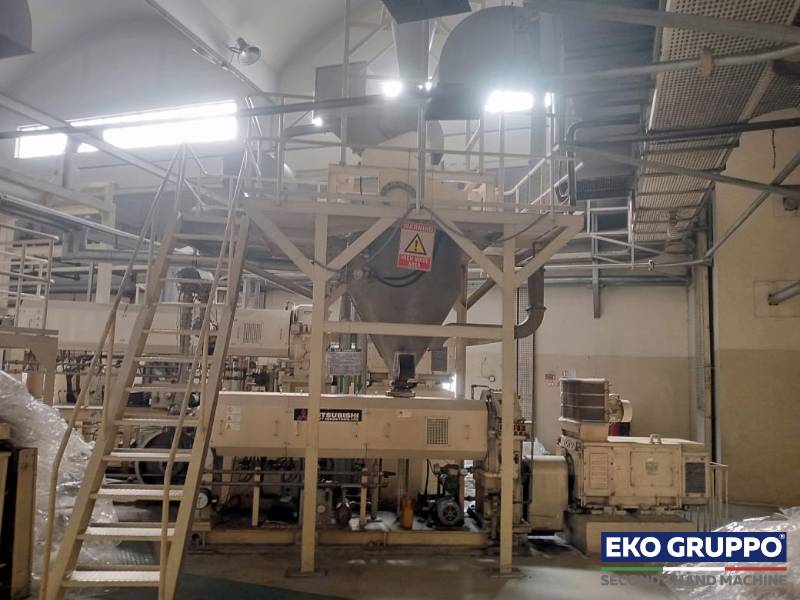

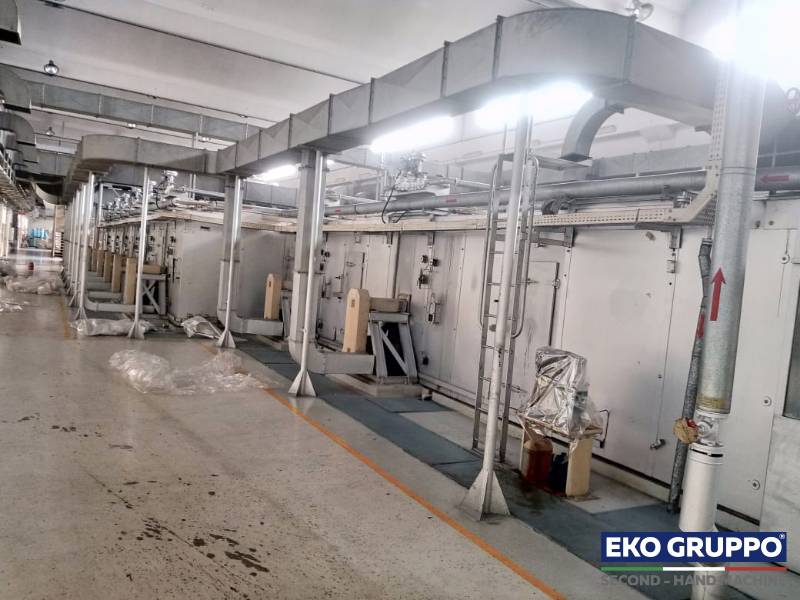

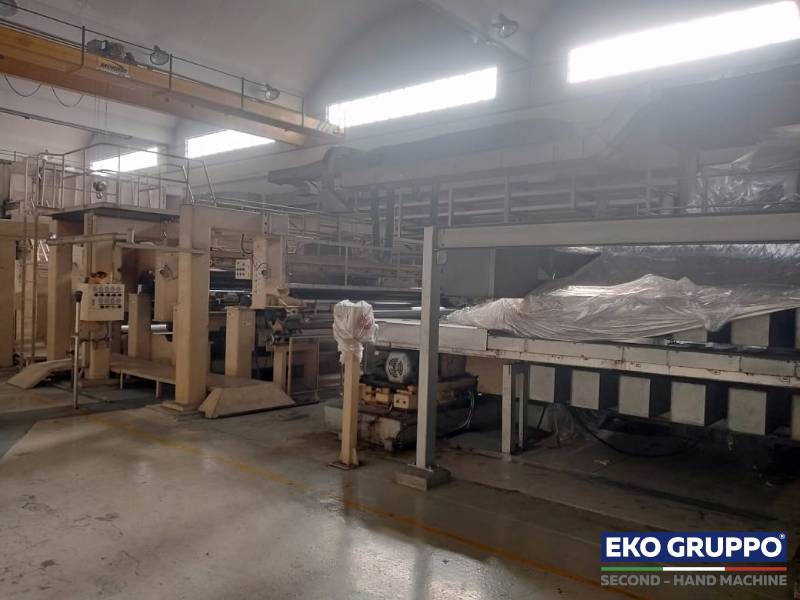

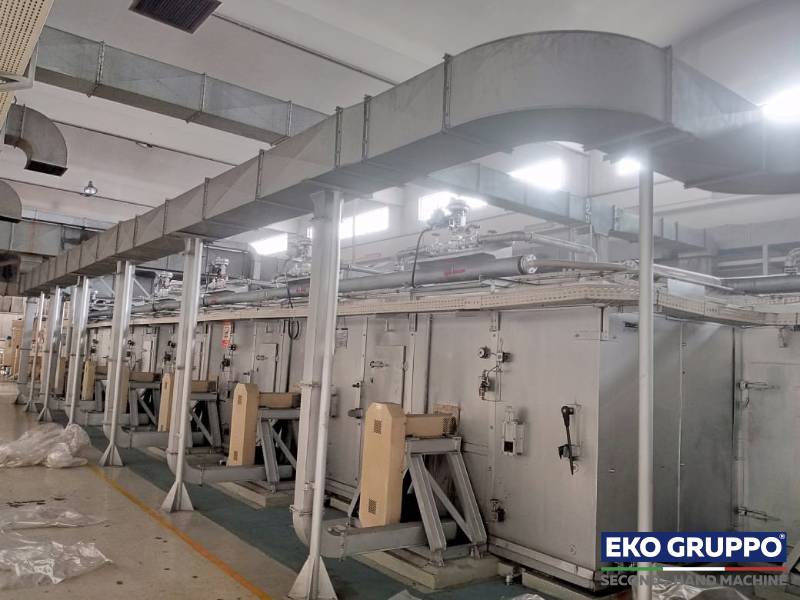

This 3 Layers BOPP film extrusion line produced by Mitsubishi is used for the production of many BOPP film types for a wide variety of applications. Mitsubishi has developed high output lines for top quality film production.
This Second-hand 3 Layers Mitsubishi BOPP film machine allow a range up to 1.500 kg/h and a film width of 4.200 mm.
Manufacturer
Mitsubishi
Year of construction
2001
Number of layers
3
Raw material
BOPP Film
Film width
4.200 mm
Technical Data | |||
|---|---|---|---|
REFERENCE MACHINE | BI-ORIENTED BOPP/Mitsubishi | ||
MATERIALS | BOPP | ||
FILM WIDTH (MAX) | 4.200 mm | ||
NUMBER OF EXTRUDERS | 3 | ||
FILM STRUCTURE | A - B - C | ||
FILM THICKNESS RANGE | from 12 µm to 50 µm | ||
NUMBER OF LAYERS | 3 | ||
MILL ROLL DIAMETER | 1.200 mm | ||
NET OUTPUT (MAX) | 1.500 Kg/h | ||
MAX MECHANICAL SPEED | 220 mt/min | ||
BOPP/BOPET Extrusion Lines
BOPP (Biaxially oriented polypropylene) and BOPET (Biaxially oriented polyester) films are the most common supports used in the food packaging and printing. BOPET is more stable through printing and laminating processes than BOPP and is often preferred where high-quality graphics are required.
These plastic films are produced in tender-frame lines where the material (PP or PET) is melted through a flat extrusion die (T-die) and solidified onto a cooled roller. The material is then stretched in the machine direction in an MDO and then in the transverse direction in a TDO. Solid-phase orientation processes create very significant changes in film properties that can be quite valuable in packaging structures. These changes permit films that are lighter weight and thinner than standard blown or cast films to satisfy performance needs by generating significant increases in such properties as tensile strength, toughness, heat stability, tear initiation resistance, and barrier.
Both BOPP and PET films can be produced in a variety of thicknesses, making them suitable for different types of packaging applications. Various types of finishes, such as matte, glossy and metallic, are also achievable, allowing manufacturers to create packaging with different textures and visual effects. With the growing demand for individual packaging, BOPP and PET films are likely to remain popular choices for manufacturers looking to create high-quality custom packaging that protects their products and enhances their brand image.
