Code EK000824

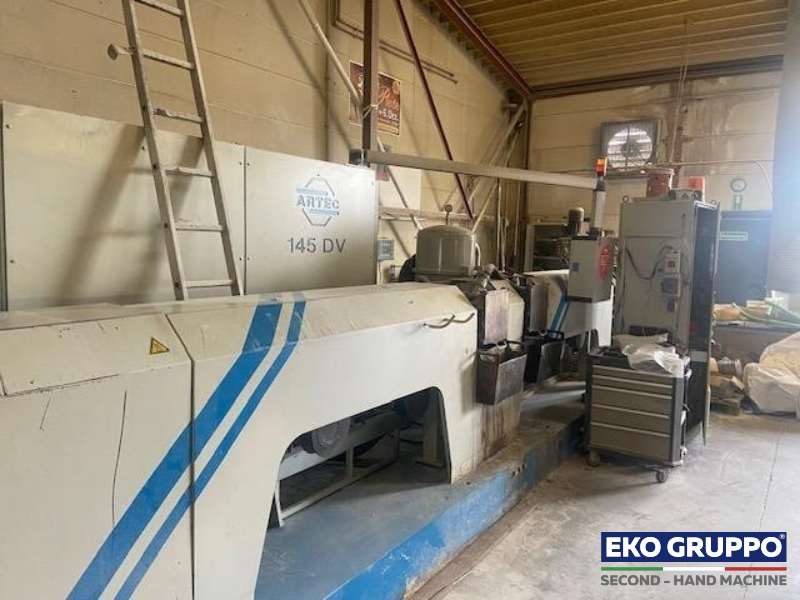

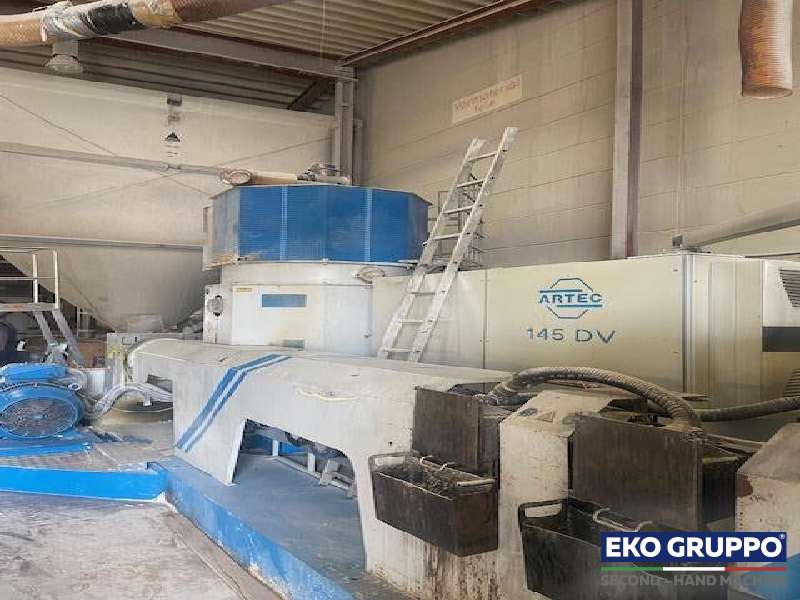

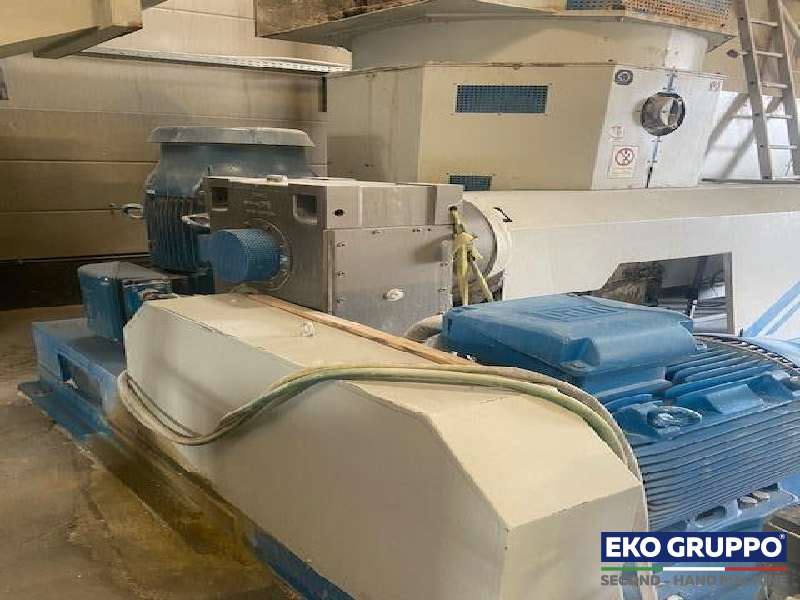

Artec 145DV Single Screw Extruder
ARTEC
SINGLE SCREW PLASTIC RECYCLING
This second-hand ARTEC single screw extruder 145DV model allow high productions with a range up designed to 900 Kg/h.
ARTEC extruder recycling plants use advanced machinery to process substantial volumes of plastic. These facilities transform diverse plastic materials into recycled pellets, sheets, and products on an industrial scale, contributing to sustainable waste management.
Manufacturer
Artec
Year of construction
2013
Model
145DV
Screw diameter
145 mm
Raw material
LDPE, HDPE, PP
Condition
Second Hand Machine
Technical Data | |||
|---|---|---|---|
REFERENCE MACHINE | 145DV | ||
TYPE | REGENERATION PLANT | ||
SCREW DIAMETER | 145 mm | ||
MATERIAL | LDPE, HDPE, PP | ||
OUTPUT | 900 Kg/h | ||

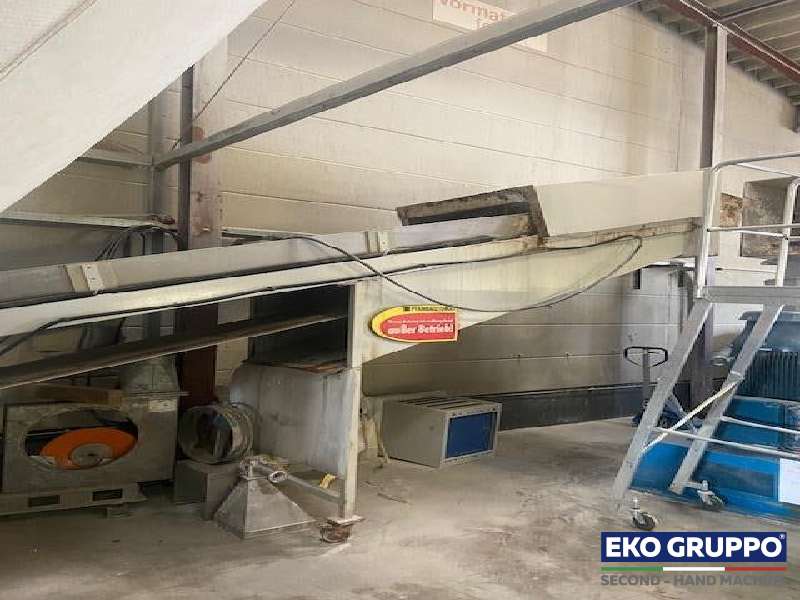

ADDITIONAL INFO | CONVEYING BELT FB 900/9000 ARTEC CUTTER UNIT ARTEC EXTRUDER BRIT-AS MELT-FILTER TYPE SK 230 ARTEC WATERRING-PELLETIZING UNIT G45 ARTEC TYPE D 400 PELLET DEWATERING SYSTEM PELLET-BLOWER | ||
Single Screw Repelletizing Lines
Single screw extruders are versatile machines that can be used for a wide range of plastic processing applications, including recycling and extrusion of various plastic materials.
It is typically used for processing materials such as rigid flakes, which are common byproducts of plastic manufacturing and recycling processes. Single screw extrusion machines are one of the most popular extruding machines and widely used for all kinds of plastics recycling. The most popurlar is the PP and PE recycling.
The process of a single screw extruder involves feeding the plastic material into a hopper, which is then transported along a rotating screw within a heated barrel. The screw applies pressure and heat to melt the plastic and force it through a die, which shapes the plastic into the desired product or form.
Final productions produced by single screw extrusion lines are in the form of pellets/ granules, can directly put into the production line for film blowing, pipe extrusion cand plastics injection.
