Code EK000195

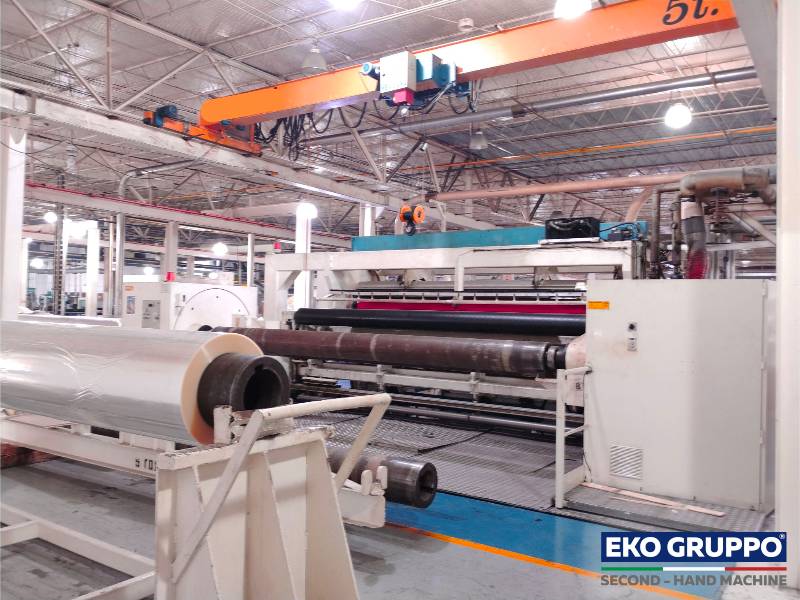

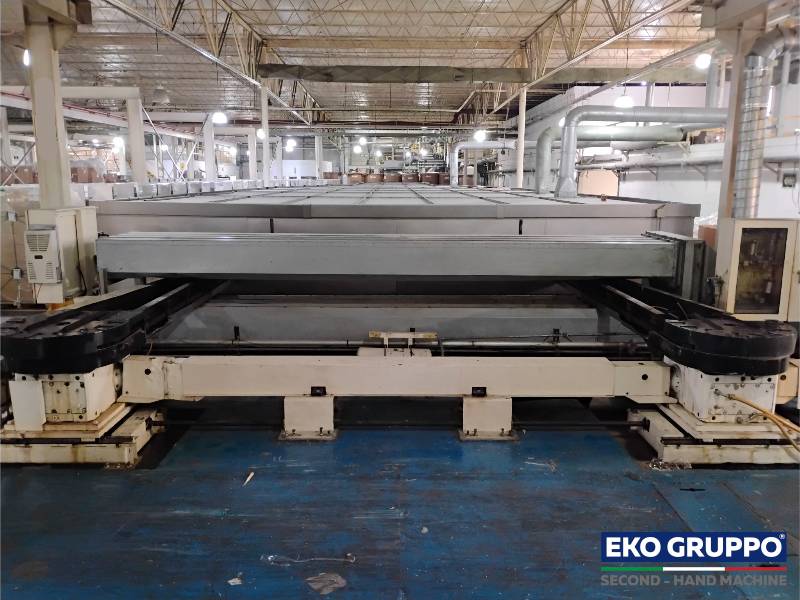

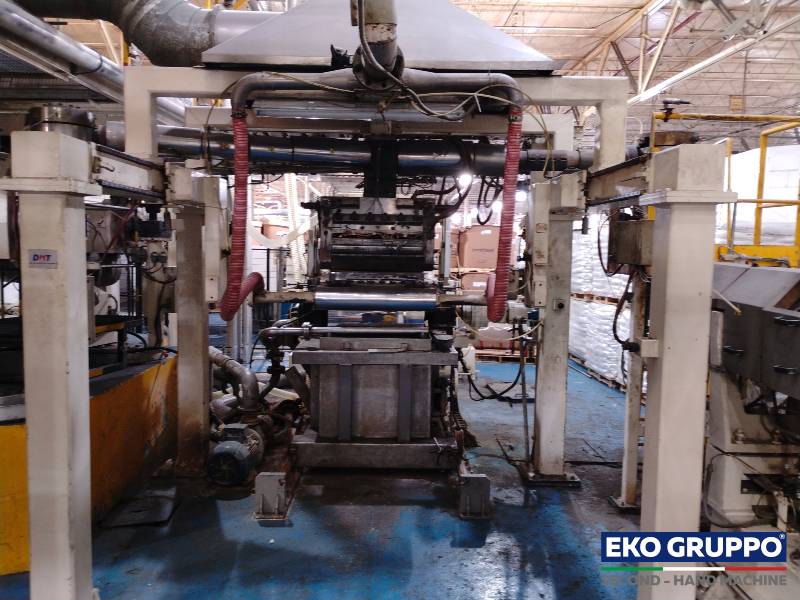

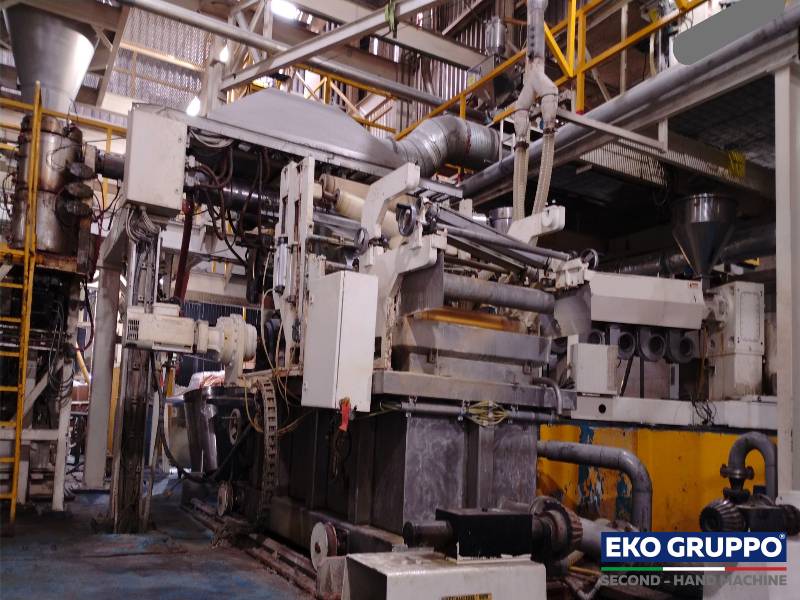

3 Layers 4200 DMT BOPP Film Extrusion Line
DMT
BOPP BOPET PACKAGING FILM EXTRUSION LINES
This 3 Layers co-extruded BOPP film extrusion line produced by DMT is used for the production of many BOPP film types for a wide variety of applications. DMT has developed high output lines for top quality film production.
This Second-hand 3 Layers DMT BOPP film machine allow a range up to 1.150 kg/h and a film width of 4.200 mm.
Manufacturer
DMT
Year of construction
1998
Number of layers
3
Raw material
BOPP Film
Film width
4.200 mm
Technical Data | |||
|---|---|---|---|
REFERENCE MACHINE | Multi-Layer Film Line by DMT | ||
MATERIALS | BOPP | ||
FILM WIDTH (MAX) | 4.200 mm | ||
NUMBER OF EXTRUDERS | 3 | ||
FILM THICKNESS RANGE | from 15 µm to 60 µm | ||
FILM STRUCTURE | A - B - C | ||
NUMBER OF LAYERS | 3 | ||
DIE WIDTH | 660 mm | ||
NET OUTPUT (MAX) | 1.150 Kg/h | ||
MAX MECHANICAL SPEED | 350 mt/min | ||
WINDER WIDTH | 4.200 mm | ||
BOPP/BOPET Extrusion Lines
BOPP (Biaxially oriented polypropylene) and BOPET (Biaxially oriented polyester) films are the most common supports used in the food packaging and printing. BOPET is more stable through printing and laminating processes than BOPP and is often preferred where high-quality graphics are required.
These plastic films are produced in tender-frame lines where the material (PP or PET) is melted through a flat extrusion die (T-die) and solidified onto a cooled roller. The material is then stretched in the machine direction in an MDO and then in the transverse direction in a TDO. Solid-phase orientation processes create very significant changes in film properties that can be quite valuable in packaging structures. These changes permit films that are lighter weight and thinner than standard blown or cast films to satisfy performance needs by generating significant increases in such properties as tensile strength, toughness, heat stability, tear initiation resistance, and barrier.
Both BOPP and PET films can be produced in a variety of thicknesses, making them suitable for different types of packaging applications. Various types of finishes, such as matte, glossy and metallic, are also achievable, allowing manufacturers to create packaging with different textures and visual effects. With the growing demand for individual packaging, BOPP and PET films are likely to remain popular choices for manufacturers looking to create high-quality custom packaging that protects their products and enhances their brand image.
